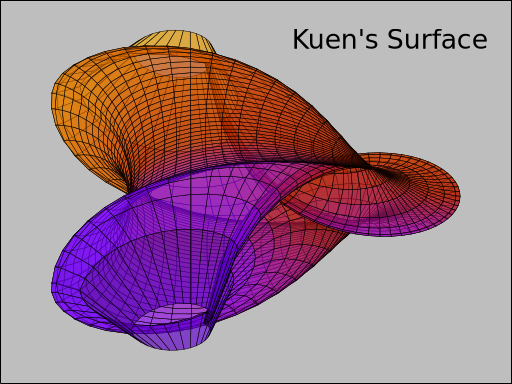

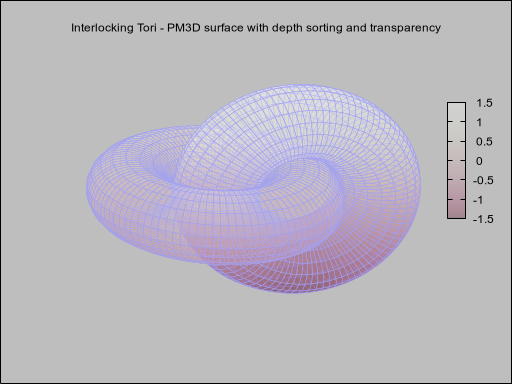

set title "Interlocking Tori - PM3D surface with depth sorting and transparency"
unset border
unset key
set object 1 rect from screen 0, 0, 0 to screen 1, 1, 0 behind
set object 1 rect fc rgb "gray" fillstyle solid 1.0 border -1
set view 64, 345, 1.24375, 0.995902
set isosamples 50, 20
unset xtics
unset ytics
unset ztics
set parametric
set dummy u,v
set urange [ -pi : pi ]
set vrange [ -pi : pi ]
set palette rgbformulae 8, 9, 7
set style fill transparent solid 0.30 border
set pm3d depthorder border linecolor rgb "#a0a0f0" linewidth 0.5
splot cos(u)+.5*cos(u)*cos(v),sin(u)+.5*sin(u)*cos(v),.5*sin(v) with pm3d, \
1+cos(u)+.5*cos(u)*cos(v),.5*sin(v),sin(u)+.5*sin(u)*cos(v) with pm3d
