gnuplot demo script: uigamma.dem

autogenerated by webify.pl on Sun Sep 17 19:56:15 2023
gnuplot version gnuplot 6.0 patchlevel rc2
#

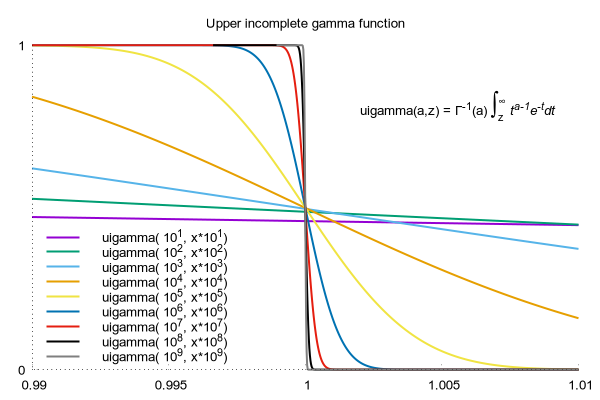

# Excercise uigamma for large input values
#
save_encoding = GPVAL_ENCODING
set encoding utf8

set title "Upper incomplete gamma function"

set label 1 at graph 0.6, 0.8
set label 1 "uigamma(a,z) = {Γ^{-1}(a) {/*2 ∫@_{/*0.5 z}^{/*.5 ∞}} {/:Italic t^{a-1}e^{-t}dt}"

set sample 1000
set xrange [.99 : 1.01]
set yrange [0:1]
set tics nomirror
set border 3 lt 0
set key bottom left reverse
set tics tc rgb "black"
set ytics 1

plot for [N=1:9] uigamma( 10.**N, x*10.**N ) lw 2 \
         title sprintf("uigamma( 10^{%d}, x*10^{%d})",N,N)


Click here for minimal script to generate this plot




#

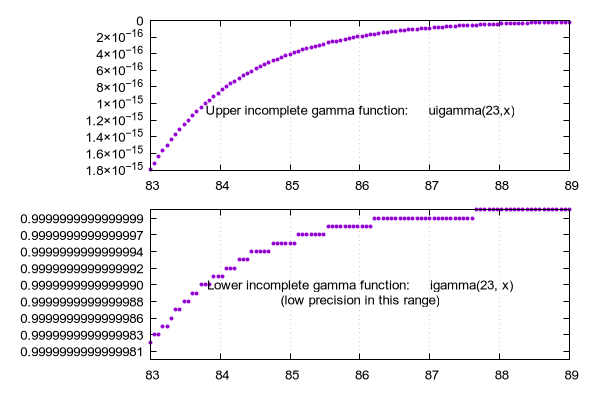

# Show the need for a separate upper incomplete gamma function Q(a,x)
# when the region of interest is such that P(a,x), the lower incomplete
# gamma function, approaches 1 and thus  provides insufficient precision.
# By definition  P(a,x) + Q(a,x) = 1.0
# gnuplot provides P(a,x) as igamma
#                  Q(a,x) as uigamma
#
unset key
set title offset 0, -7.5
set pointsize 0.5
set grid x

set multiplot layout 2,1 upwards margins 0.25, 0.95, 0.1, 0.95 spacing 0, screen .10
set xrange [83. : 89.]
set yrange [1. - 2.e-15 : 1.0]
set format y "%.16f"
set title "Lower incomplete gamma function:     igamma(23, x)\n(low precision in this range)"
plot igamma(23., x) with points notitle

set format y " %h"
set auto y
set yrange reverse
set title "Upper incomplete gamma function:     uigamma(23,x)"
plot uigamma(23., x) with points notitle

unset multiplot


Click here for minimal script to generate this plot
