gnuplot demo script: binary.dem

autogenerated by webify.pl on Tue Apr 14 15:20:05 2009
gnuplot version gnuplot 4.3 patchlevel CVS-12Apr2009
#
# $Id: binary.dem,v 1.5 2003/10/28 05:35:54 sfeam Exp $
#
set style data lines
set hidden3d

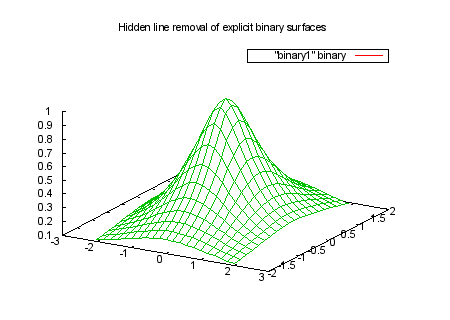

set title "Hidden line removal of explicit binary surfaces"
set ticslevel 0
set key box

set xrange [-3:3]
set yrange [-2:2]
splot "binary1" binary

Click here for minimal script to generate this plot

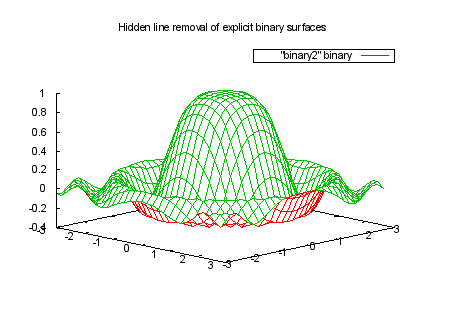

set view 70,45
set xrange [-3:3]
set yrange [-3:3]
splot "binary2" binary

Click here for minimal script to generate this plot

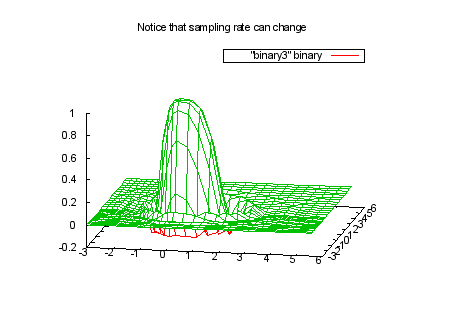

set title "Notice that sampling rate can change"
set vi 70,10
set xrange [-3:6]
set yrange [-3:6]
splot "binary3" binary

Click here for minimal script to generate this plot
