gnuplot demo script: fillbetween.dem

autogenerated by webify.pl on Tue Apr 14 15:20:10 2009
gnuplot version gnuplot 4.3 patchlevel CVS-12Apr2009
#
# Demonstrate filling the area between two curves
# and also the application of fillstyle to filled curves.
# Ethan Merritt  <merritt@u.washington.edu>
# June 2004
#

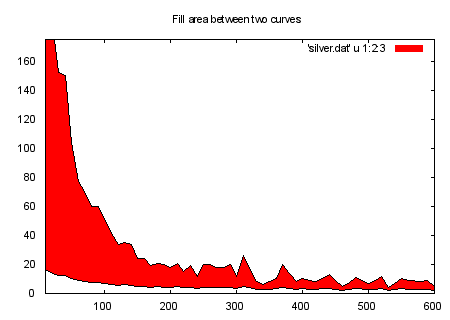

set title "Fill area between two curves"
set style data lines
set xrange [10:*]
set yrange [0:175]
plot 'silver.dat' u 1:2:3 w filledcu, \
      '' u 1:2 lt -1 notitle, '' u 1:3 lt -1 notitle

Click here for minimal script to generate this plot

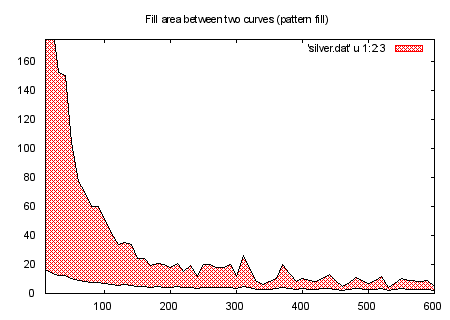

set style fill pattern 2
set title "Fill area between two curves (pattern fill)"
replot

Click here for minimal script to generate this plot

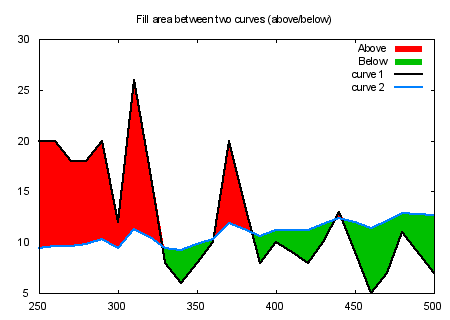

set title "Fill area between two curves (above/below)"
set style fill solid 1.0 noborder
set xrange [250:500]
set auto y
plot 'silver.dat' u 1:2:($3+$1/50.) w filledcurves above title 'Above', \
               '' u 1:2:($3+$1/50.) w filledcurves below title 'Below', \
	       '' u 1:2 lt -1 lw 2 title 'curve 1', \
	       '' u 1:($3+$1/50.) lt 3 lw 2 title 'curve 2'

Click here for minimal script to generate this plot
