gnuplot demo script: fit.dem

autogenerated by webify.pl on Tue Apr 14 15:20:12 2009
gnuplot version gnuplot 4.3 patchlevel CVS-12Apr2009
#
# $Id: fit.dem,v 1.7 2009/02/28 20:45:46 vanzandt Exp $
#

print "Some examples how data fitting using nonlinear least squares fit"
print "can be done."
print ""

Click here for minimal script to generate this plot

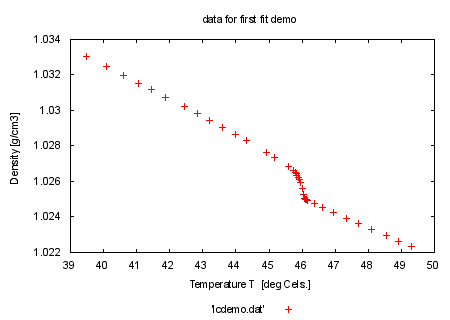

set title 'data for first fit demo'
set xlabel "Temperature T  [deg Cels.]"
set ylabel "Density [g/cm3]"
set key below
plot 'lcdemo.dat'

print "now fitting a straight line to the data :-)"
print "only as a demo without physical meaning"
load 'line.fnc'
y0 = 0.0
m = 0.0
print "fit function and initial parameters are as follows:"
print GPFUN_l
show variables y0
show variables m
#show variables

Click here for minimal script to generate this plot

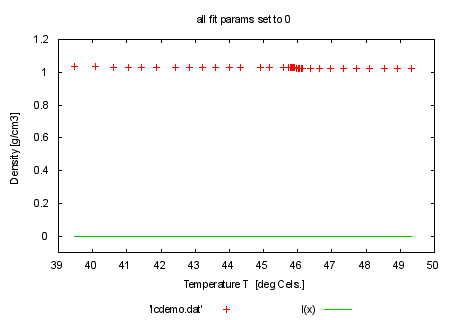

set title 'all fit params set to 0'
plot [*:*][-.1:1.2] 'lcdemo.dat', l(x)
print "fit command will be: fit l(x) 'lcdemo.dat' via y0, m"

Click here for minimal script to generate this plot



fit l(x) 'lcdemo.dat' via y0, m

Click here for minimal script to generate this plot

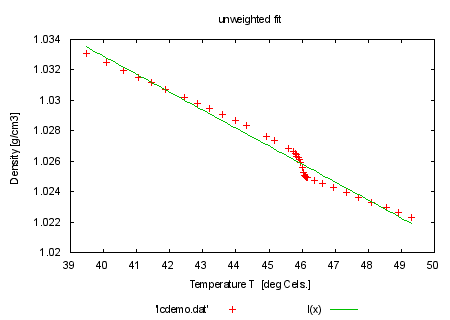

set title 'unweighted fit'
plot 'lcdemo.dat', l(x)

print ""
print "now fit with weights from column 3 which favor low temperatures"
print "command will be: fit l(x) 'lcdemo.dat' using 1:2:3 via y0, m"

Click here for minimal script to generate this plot



fit l(x) 'lcdemo.dat' using 1:2:3 via y0, m

Click here for minimal script to generate this plot

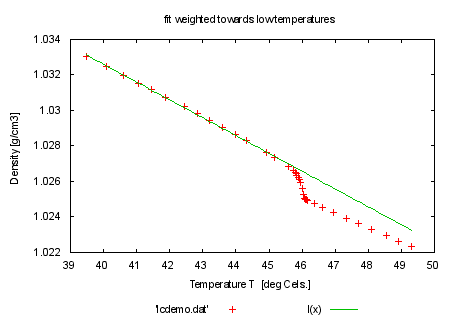

set title 'fit weighted towards low temperatures'
plot 'lcdemo.dat', l(x)

print ""
print "now fit with weights from column 4 instead"
print "command will be: fit l(x) 'lcdemo.dat' using 1:2:4 via y0, m"

Click here for minimal script to generate this plot



fit l(x) 'lcdemo.dat' using 1:2:4 via y0, m

Click here for minimal script to generate this plot

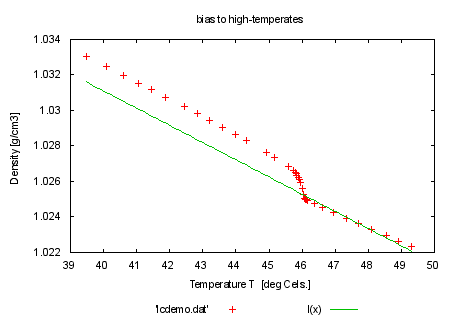

set title 'bias to high-temperates'
plot 'lcdemo.dat', l(x)

Click here for minimal script to generate this plot

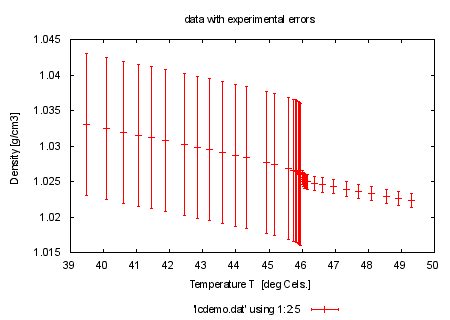

set title 'data with experimental errors'
plot 'lcdemo.dat' using 1:2:5 with errorbars
print ""
print "now use these real single-measurement errors from column 5 to reach "
print "such a result (look at the file lcdemo.dat and compare the columns to "
print "see the difference)"
print "command will be: fit l(x) 'lcdemo.dat' using 1:2:5 via y0, m"

Click here for minimal script to generate this plot



fit l(x) 'lcdemo.dat' using 1:2:5 via y0, m

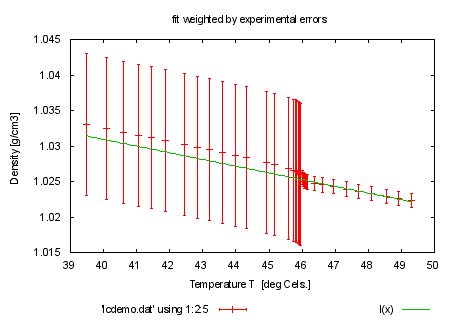

Click here for minimal script to generate this plot



set title 'fit weighted by experimental errors'
plot 'lcdemo.dat' using 1:2:5 with errorbars, l(x)

Click here for minimal script to generate this plot




load 'density.fnc'

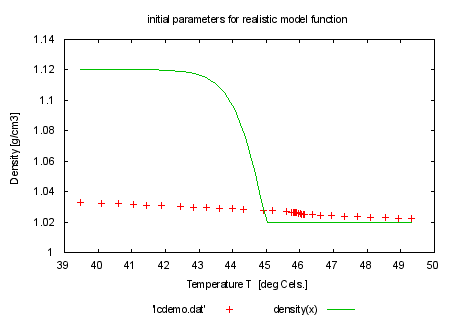

set title 'initial parameters for realistic model function'
plot 'lcdemo.dat', density(x)
print ""
print "It's time now to try a more realistic model function:"
print GPFUN_density
print GPFUN_curve
print GPFUN_lowlin
print GPFUN_high
#show functions
print "density(x) is a function which shall fit the whole temperature"
print "range using a ?: expression. It contains 6 model parameters which"
print "will all be varied. Now take the start parameters out of the"
print "file 'start.par' and plot the function."
print "command will be: fit density(x) 'lcdemo.dat' via 'start.par'"
load 'start.par'

Click here for minimal script to generate this plot



fit density(x) 'lcdemo.dat' via 'start.par'

Click here for minimal script to generate this plot

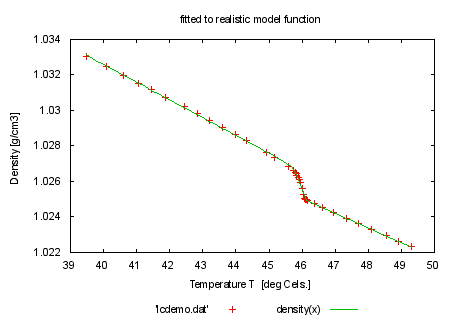

set title 'fitted to realistic model function'
plot 'lcdemo.dat', density(x)

print  ""
print  "looks already rather nice? We will do now the following: set"
print  "the epsilon limit higher so that we need more iteration steps"
print  "to convergence. During fitting please hit ctrl-C. You will be asked"
print  "Stop, Continue, Execute: Try everything. You may define a script"
print  "using the FIT_SCRIPT environment variable. An example would be"
print  "'FIT_SCRIPT=plot nonsense.dat'. Normally you don't need to set"
print  "FIT_SCRIPT since it defaults to 'replot'. Please note that FIT_SCRIPT"
print  "cannot be set from inside gnuplot."
print  ""
print  "command will be: fit density(x) 'lcdemo.dat' via 'start.par'"

Click here for minimal script to generate this plot



FIT_LIMIT = 1e-10
fit density(x) 'lcdemo.dat' via 'start.par'

Click here for minimal script to generate this plot

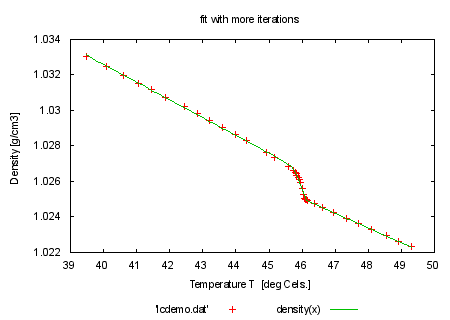

set title 'fit with more iterations'
plot 'lcdemo.dat', density(x)

Click here for minimal script to generate this plot




FIT_LIMIT = 1e-5
print "\nNow a brief demonstration of 3d fitting."
print "hemisphr.dat contains random points on a hemisphere of"
print "radius 1, but we let fit figure this out for us."
print "It takes many iterations, so we limit FIT_MAXITER to 50."
#HBB: made this a lot harder: also fit the center of the sphere
#h(x,y) = sqrt(r*r - (x-x0)**2 - (y-y0)**2) + z0
#HBB 970522: distort the function, so it won't fit exactly:
h(x,y) = sqrt(r*r - (abs(x-x0))**2.2 - (abs(y-y0))**1.8) + z0
x0 = 0.1
y0 = 0.2
z0 = 0.3
r=0.5
FIT_MAXITER=50

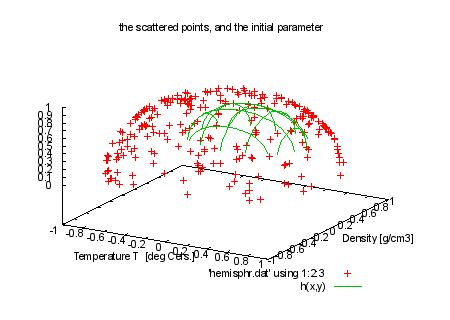

set title 'the scattered points, and the initial parameter'
splot 'hemisphr.dat' using 1:2:3, h(x,y)
print "fit function will be: " . GPFUN_h
print "we *must* provide 4 columns for a 3d fit. We fake errors=1"
print "command will be: fit h(x,y) 'hemisphr.dat' using 1:2:3:(1) via r, x0,y0,z0"

Click here for minimal script to generate this plot




# we *must* provide 4 columns for a 3d fit. We fake errors=1
fit h(x,y) 'hemisphr.dat' using 1:2:3:(1) via r, x0, y0, z0

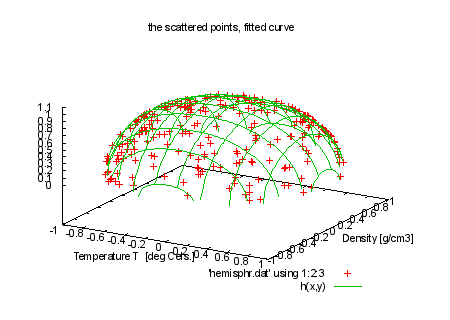

set title 'the scattered points, fitted curve'
splot 'hemisphr.dat' using 1:2:3, h(x,y)
print "\n\nNotice, however, that this would converge much faster when"
print "fitted in a more appropriate co-ordinate system:"
print "fit r 'hemisphr.dat' using 0:($1*$1+$2*$2+$3*$3) via r"
print "where we are fitting f(x)=r to the radii calculated as the data"
print "is read from the file. No x value is required in this case."

Click here for minimal script to generate this plot



FIT_MAXITER=0   # no limit : we cannot delete the variable once set

print "\n\nNow an example how to fit multi-branch functions\n"
print  "The model consists of two branches, the first describing longitudinal"
print  "sound velocity as function of propagation direction (upper data, from "
print  "dataset 1), the second describing transverse sound velocity (lower "
print  "data, from dataset 0).\n"
print  "The model uses these data in order to fit elastic stiffnesses"
print  "which occur differently in both branches."
load 'hexa.fnc'
load 'sound.par'

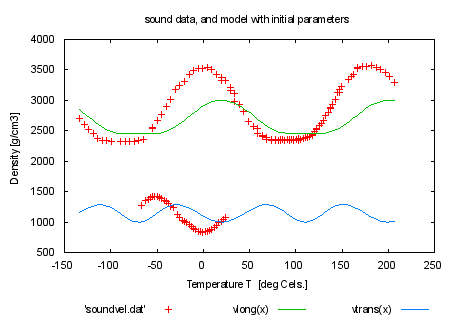

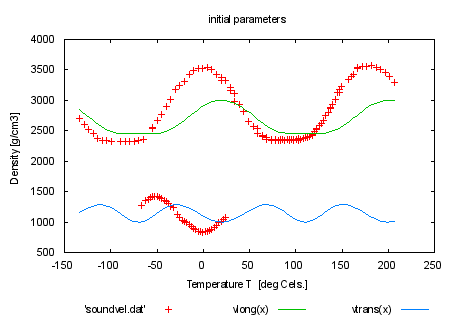

set title 'sound data, and model with initial parameters'
plot 'soundvel.dat', vlong(x), vtrans(x)
print ""
print "fit function will be: " . GPFUN_f
print GPFUN_vlong
print GPFUN_vtrans
print "y will be the index of the dataset"
print "command will be: fit f(x,y) 'soundvel.dat' using 1:-2:2:(1) via 'sound.par'"

Click here for minimal script to generate this plot



# Must provide an error estimate for a 3d fit. Use constant 1
fit f(x,y) 'soundvel.dat' using 1:-2:2:(1) via 'sound.par'
#create soundfit.par, reading from sound.par and updating values
update 'sound.par' 'soundfit.par'
print  ""

Click here for minimal script to generate this plot

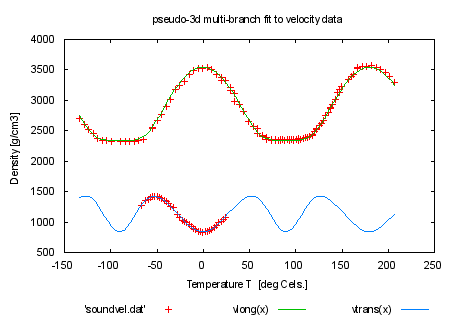

set title 'pseudo-3d multi-branch fit to velocity data'
plot 'soundvel.dat', vlong(x), vtrans(x)
print  "Look at the file 'hexa.fnc' to see how the branches are realized"
print  "using the data index as a pseudo-3d fit"
print  ""
print  "Next we only use every fifth data point for fitting by using the"
print  "'every' keyword. Look at the fitting-speed increase and at"
print  "fitting result."
print  "command will be: fit f(x,y) 'soundvel.dat' every 5 using 1:-2:2:(1) via 'sound.par'"

Click here for minimal script to generate this plot



load 'sound.par'
fit f(x,y) 'soundvel.dat' every 5 using 1:-2:2:(1) via 'sound.par'

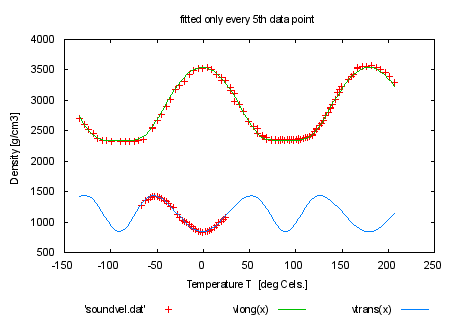

set title 'fitted only every 5th data point'
plot 'soundvel.dat', vlong(x), vtrans(x)
print  "When you compare the results (see 'fit.log') you remark that"
print  "the uncertainties in the fitted constants have become larger,"
print  "the quality of the plot is only slightly affected."
print  ""
print  "By marking some parameters as '# FIXED' in the parameter file"
print  "you fit only the others (c44 and c13 fixed here)."
print  ""

Click here for minimal script to generate this plot



load 'sound2.par'
set title 'initial parameters'
plot 'soundvel.dat', vlong(x), vtrans(x)
fit f(x,y) 'soundvel.dat' using 1:-2:2:(1) via 'sound2.par'
set title 'fit with c44 and c13 fixed'
plot 'soundvel.dat', vlong(x), vtrans(x)
print  "This has the same effect as specifying only the real free"
print  "parameters by the 'via' syntax."
print  ""
print  "fit f(x) 'soundvel.dat' via c33, c11, phi0"
print  ""

Click here for minimal script to generate this plot



load 'sound.par'
set title 'initial parameters'
plot 'soundvel.dat', vlong(x), vtrans(x)
fit f(x,y) 'soundvel.dat' using 1:-2:2:(1) via c33, c11, phi0
set title 'fit via c33,c11,phi0'
plot 'soundvel.dat', vlong(x), vtrans(x)

print  "Here comes an example of a very complex function..."
print  ""

Click here for minimal script to generate this plot




set xlabel "Delta [degrees]"
set ylabel "Reflectivity"

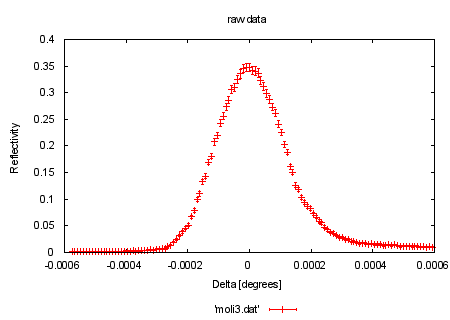

set title 'raw data'
#HBB 970522: here and below, use the error column present in moli3.dat:
plot 'moli3.dat' w e

print "now fitting the model function to the data"
load 'reflect.fnc'

#HBB 970522: Changed initial values to something sensible, i.e.
#  something an experienced user of fit would actually use.
#  FIT_LIMIT is also raised, to ensure a better fit.
eta = 1.2e-4
tc = 1.8e-3
FIT_LIMIT=1e-10

#show variables
#show functions

Click here for minimal script to generate this plot

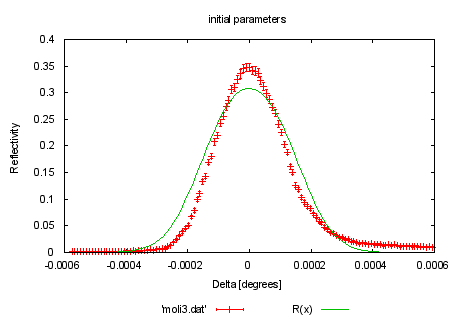

set title 'initial parameters'
plot 'moli3.dat' w e, R(x)
print "fit function is: " . GPFUN_R
print GPFUN_a
print GPFUN_W
print "command will be: fit R(x) 'moli3.dat' u 1:2:3 via eta, tc"

Click here for minimal script to generate this plot



fit R(x) 'moli3.dat' u 1:2:3 via eta, tc

Click here for minimal script to generate this plot



set title 'fitted parameters'
replot

#HBB 970522: added comment on result of last fit.
print "Looking at the plot of the resulting fit curve, you can see"
print "that this function doesn't really fit this set of data points."
print "This would normally be a reason to check for measurement problems"
print "not yet accounted for, and maybe even re-think the theoretic"
print "prediction in use."
print ""

Click here for minimal script to generate this plot




set xlabel 'x'
set ylabel 'y'
set zlabel 'z'
set ticslevel .2
set zrange [-3:3]

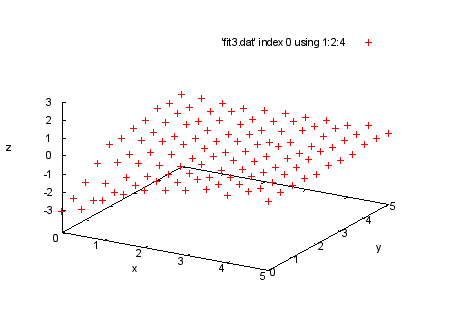

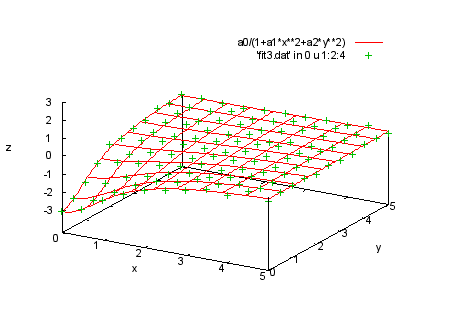

splot 'fit3.dat' index 0 using 1:2:4
print '
print 'Next we show a fit with three independent variables.  The file
print 'fit3.dat has four columns, with values of the three independent
print 'variable x, y, and t, and the resulting value z.  The data
print 'lines are in four sections, with t being constant within each
print 'section.  The sections are separated by two blank lines, so we

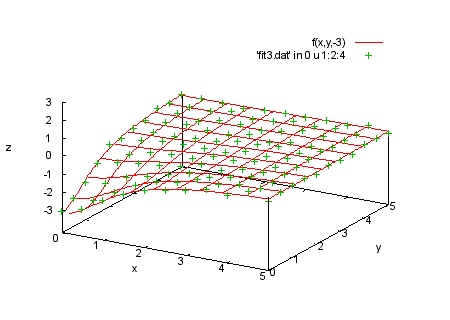

print 'can select sections with "index" modifiers.  Here are the data in
print 'the first section, where t = -3.
print '

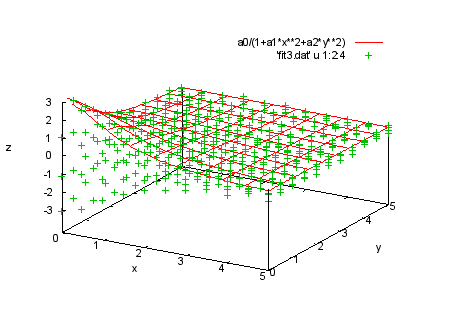

print 'We will fit the function a0/(1 + a1*x**2 + a2*y**2) to these
print 'data. Since at this point we have two independent variables,
print 'our "using" spec has four entries, representing x:y:z:s (where
print 's is the estimated error in the z value).

print "Command will be:
print "  fit a0/(1+a1*x**2+a2*y**2) 'fit3.dat' index 0 using 1:2:4:(1) via a0,a1,a2

Click here for minimal script to generate this plot



a0=1; a1=.1; a2=.1
fit a0/(1+a1*x**2+a2*y**2) 'fit3.dat' index 0 using 1:2:4:(1) via a0,a1,a2

Click here for minimal script to generate this plot



splot a0/(1+a1*x**2+a2*y**2), 'fit3.dat' in 0 u 1:2:4

Click here for minimal script to generate this plot

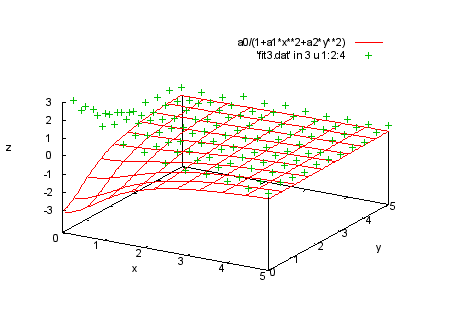

splot a0/(1+a1*x**2+a2*y**2), 'fit3.dat' in 3 u 1:2:4

print "
print "Here is the last set of data where t = 3.
print "We fit the same function to this set.
print "Command will be:
print "  fit a0/(1+a1*x**2+a2*y**2) 'fit3.dat' in 3 u 1:2:4:(1) via a0,a1,a2

Click here for minimal script to generate this plot



fit a0/(1+a1*x**2+a2*y**2) 'fit3.dat' in 3 u 1:2:4:(1) via a0,a1,a2

Click here for minimal script to generate this plot

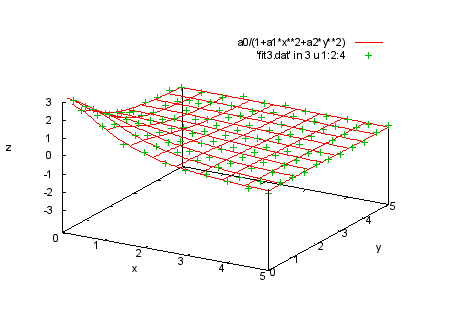

splot a0/(1+a1*x**2+a2*y**2), 'fit3.dat' in 3 u 1:2:4

Click here for minimal script to generate this plot



splot a0/(1+a1*x**2+a2*y**2), 'fit3.dat' u 1:2:4

print "
print "We also have data for several intermediate values of t.  We
print "will fit the function f(x,y,t)=a0*t/(1+a1*x**2+a2*y**2) to all
print "the data.  Since there are now three independent variables, we
print "need a using spec with five entries, representing x:y:t:z:s.
print "Command will be:
print "  fit f(x,y,t) 'fit3.dat' u 1:2:3:4:(1) via a0,a1,a2

Click here for minimal script to generate this plot



f(x,y,t)=a0*t/(1+a1*x**2+a2*y**2)
fit f(x,y,t) 'fit3.dat' u 1:2:3:4:(1) via a0,a1,a2

print "We plot the data in each section with the corresponding
print "function values.


Click here for minimal script to generate this plot



splot f(x,y,-3), 'fit3.dat' in 0 u 1:2:4

Click here for minimal script to generate this plot

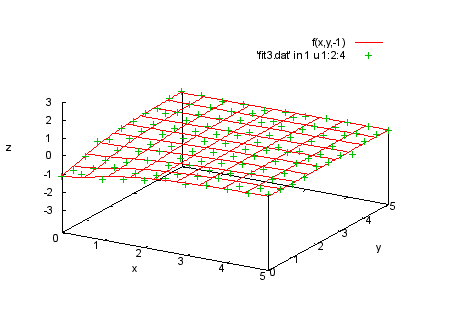

splot f(x,y,-1), 'fit3.dat' in 1 u 1:2:4

Click here for minimal script to generate this plot

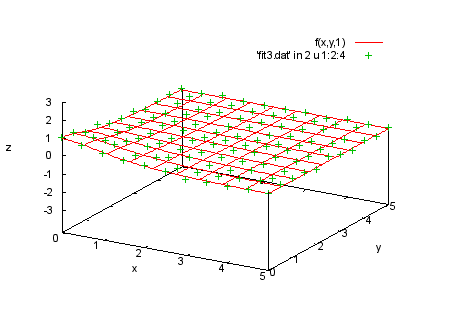

splot f(x,y,1), 'fit3.dat' in 2 u 1:2:4

Click here for minimal script to generate this plot

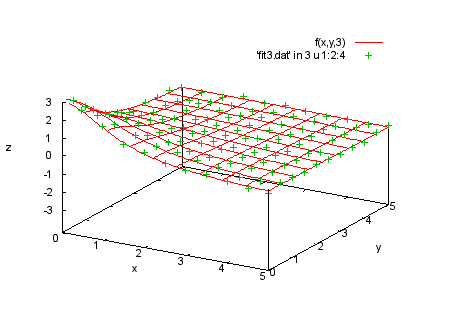

splot f(x,y,3), 'fit3.dat' in 3 u 1:2:4

Click here for minimal script to generate this plot

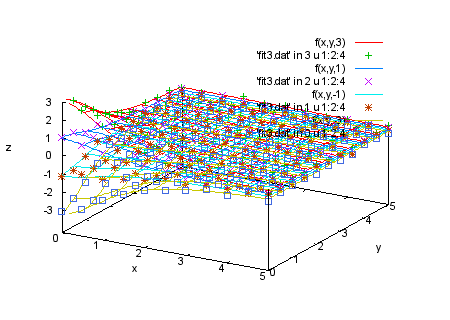

splot f(x,y,3),  'fit3.dat' in 3 u 1:2:4, \
      f(x,y,1),  'fit3.dat' in 2 u 1:2:4, \
      f(x,y,-1), 'fit3.dat' in 1 u 1:2:4, \
      f(x,y,-3), 'fit3.dat' in 0 u 1:2:4

print 'Here are all the data together.
print '
print 'You can use ranges to rename variables and/or limit the data
print 'included in the fit.  The first range corresponds to the first
print '"using" entry, etc.  For example, we could have gotten the same
print 'fit like this:
print '   fit [lon=*:*][lat=*:*][time=*:*]        \'
print '   a0*time/(1 + a1*lon**2 + a2*lat**2)     \'
print '   "fit3.dat" u 1:2:3:4:(1) via a0,a1,a2'
print '

print  "You can have a look at all previous fit results by looking into"
print  "the file 'fit.log' or whatever you defined the env-variable 'FIT_LOGFILE'."
print  "Remember that this file will always be appended, so remove it"
print  "from time to time!"
print  ""

Click here for minimal script to generate this plot
