gnuplot demo script: heatmaps.dem

autogenerated by webify.pl on Tue Apr 14 15:20:41 2009
gnuplot version gnuplot 4.3 patchlevel CVS-12Apr2009
#
# Two ways of generating a 2D heat map from ascii data
#

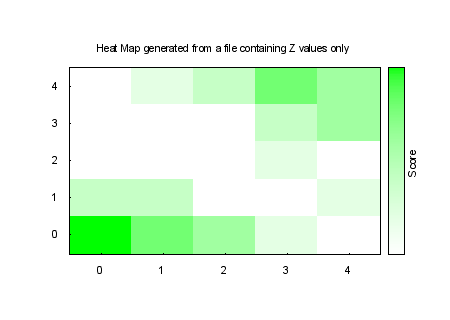

set title "Heat Map generated from a file containing Z values only"
unset key
set tic scale 0

# Color runs from white to green
set palette rgbformula -7,2,-7
set cbrange [0:5]
set cblabel "Score"
unset cbtics

set xrange [-0.5:4.5]
set yrange [-0.5:4.5]

set view map
splot '-' matrix with image
5 4 3 1 0
2 2 0 0 1
0 0 0 1 0
0 0 0 2 3
0 1 2 4 3
e
e


Click here for minimal script to generate this plot

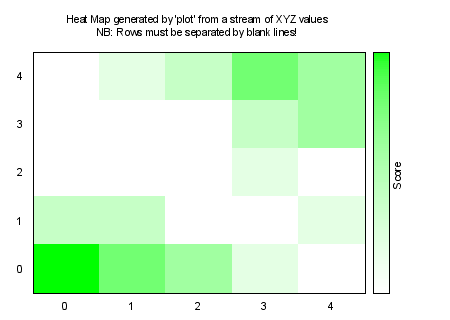

set title "Heat Map generated by 'plot' from a stream of XYZ values"\
         ."\nNB: Rows must be separated by blank lines!"

plot '-' using 2:1:3 with image
0 0 5
0 1 4
0 2 3
0 3 1
0 4 0

1 0 2
1 1 2
1 2 0
1 3 0
1 4 1

2 0 0
2 1 0
2 2 0
2 3 1
2 4 0

3 0 0
3 1 0
3 2 0
3 3 2
3 4 3

4 0 0
4 1 1
4 2 2
4 3 4
4 4 3
e


Click here for minimal script to generate this plot





#
# Demonstrate use of 4th data column to color a 3D surface.
# Also demonstrate use of the pseudodata special file '++'.
# This plot is nice for exploring the effect of the 'l' and 'L' hotkeys.
#
set view 49, 28, 1, 1.48
set xrange [ 5 : 35 ] noreverse nowriteback
set yrange [ 5 : 35 ] noreverse nowriteback
# set zrange [ 1.0 : 3.0 ] noreverse nowriteback
set ticslevel 0
set format cb "%4.1f"
set colorbox user size .03, .6 noborder
set cbtics scale 0

set samples 25, 25
set isosamples 50, 50

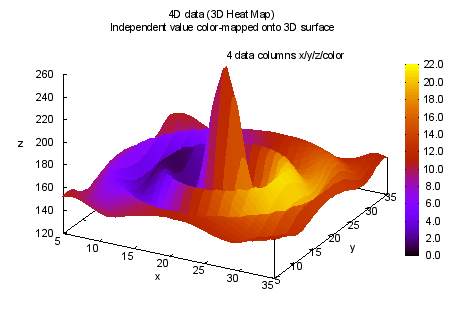

set title "4D data (3D Heat Map)"\
          ."\nIndependent value color-mapped onto 3D surface"  offset 0,1
set xlabel "x" offset 3, 0, 0
set ylabel "y" offset -5, 0, 0
set zlabel "z" offset 2, 0, 0
set pm3d implicit at s

Z(x,y) = 100. * (sinc(x,y) + 1.5)
sinc(x,y) = sin(sqrt((x-20.)**2+(y-20.)**2))/sqrt((x-20.)**2+(y-20.)**2)
color(x,y) = 10. * (1.1 + sin((x-20.)/5.)*cos((y-20.)/10.))

splot '++' using 1:2:(Z($1,$2)):(color($1,$2)) with pm3d title "4 data columns x/y/z/color"


Click here for minimal script to generate this plot

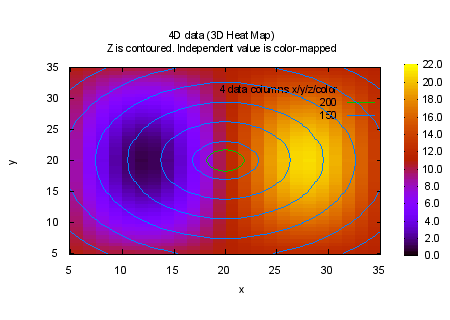

set title "4D data (3D Heat Map)"\
          ."\nZ is contoured. Independent value is color-mapped"  offset 0,1

set view map

set contour base
splot '++' using 1:2:(Z($1,$2)):(color($1,$2)) with pm3d title "4 data columns x/y/z/color"


Click here for minimal script to generate this plot
