gnuplot demo script: rgb_variable.dem

autogenerated by webify.pl on Tue Apr 14 15:20:31 2009
gnuplot version gnuplot 4.3 patchlevel CVS-12Apr2009
#

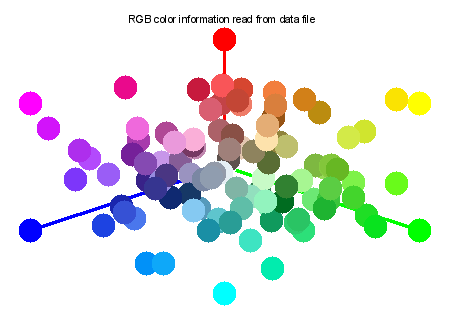

# Demo of reading color information from the data file itself
#

#
rgb(r,g,b) = int(r)*65536 + int(g)*256 + int(b)

#
set border 0
unset xtics; unset ytics; unset ztics
set rmargin 5; set lmargin 5; set bmargin 2

set angle degrees
xrgb(r,g,b) = (g-b)/255. * cos(30.)
yrgb(r,g,b) = r/255. - (g+b)/255. * sin(30.)
set arrow 1 from 0,0 to 0,1 nohead lw 3 lc rgb "red" back
set arrow 2 from 0,0 to cos(-30), sin(-30) nohead lw 3 lc rgb "green" back
set arrow 3 from 0,0 to cos(210), sin(210) nohead lw 3 lc rgb "blue" back

set title "RGB color information read from data file"
plot 'rgb_variable.dat' using (xrgb($1,$2,$3)):(yrgb($1,$2,$3)):(rgb($1,$2,$3)) \
     with points pt 7 ps 4 lc rgb variable notitle

Click here for minimal script to generate this plot




#

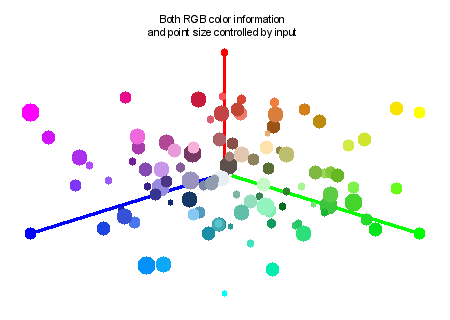

set title "Both RGB color information\n and point size controlled by input"
plot 'rgb_variable.dat' using (xrgb($1,$2,$3)):(yrgb($1,$2,$3)):(1.+2.*rand(0)):(rgb($1,$2,$3)) \
     with points pt 7 ps var lc rgb variable notitle

Click here for minimal script to generate this plot




#

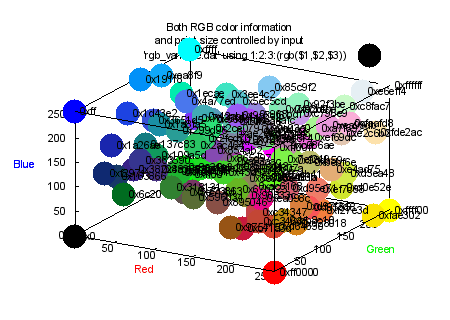

set border -1 front linetype -1 linewidth 1.000
set ticslevel 0
set xtics border
set ytics border
set ztics border
#
unset arrow 1
unset arrow 2
unset arrow 3
#
set xlabel "Red" tc rgb "red"
set xrange [0:255]
set ylabel "Green" tc rgb "green"
set yrange [0:255]
set zlabel "Blue" tc rgb "blue"
set zrange [0:255]

#
splot 'rgb_variable.dat' using 1:2:3:(rgb($1,$2,$3)) with points pt 7 ps 4 lc rgb variable, \
      '' using 1:2:3:(sprintf("0x%x",rgb($1,$2,$3))) with labels left offset 1 notitle

Click here for minimal script to generate this plot



#
#

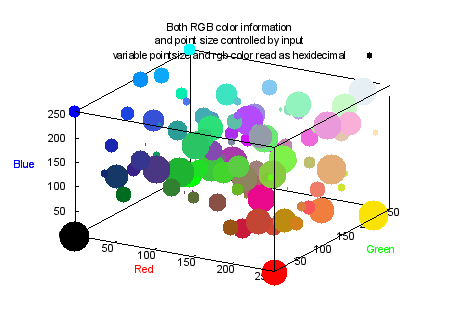

# Unfortunately, not all platforms allow us to read hexadecimal constants
# from a data file. Warn the user if that is the case.
#
if (0 == int('0x01')) \
   set label 99 at screen .05, screen .15 "If you see only black dots,\nthis means your platform does not \nsupport reading hexadecimal constants\nfrom a data file. Get a newer libc."

splot 'rgb_variable.dat' using 1:2:3:(5*rand(0)):4 with points pt 7 ps variable lc rgb variable \
      title "variable pointsize and rgb color read as hexidecimal"


Click here for minimal script to generate this plot



set label 99 ""
#

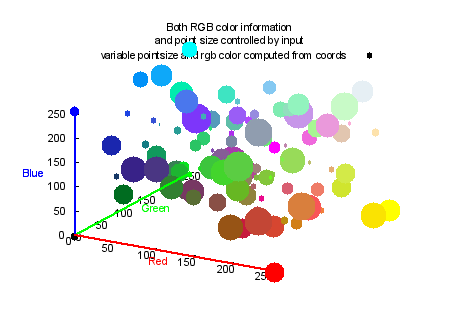

set border 0
set xtics axis nomirror
set ytics axis nomirror
set ztics axis nomirror
set xzeroaxis lt -1 lc rgb "red" lw 2
set yzeroaxis lt -1 lc rgb "green" lw 2
set zzeroaxis lt -1 lc rgb "blue" lw 2
set xyplane at 0.0

splot 'rgb_variable.dat' using 1:2:3:(5*rand(0)):(rgb($1,$2,$3)) with points pt 7 ps variable lc rgb variable \
      title "variable pointsize and rgb color computed from coords"

Click here for minimal script to generate this plot

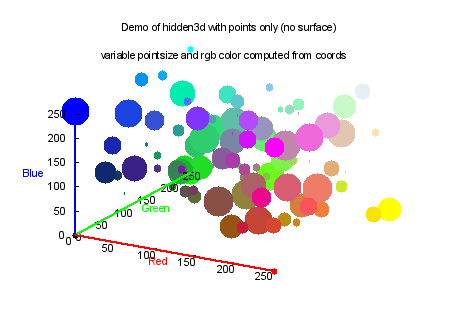

set title "Demo of hidden3d with points only (no surface)"
set hidden3d
replot

Click here for minimal script to generate this plot



#
