gnuplot demo script: simple.dem

autogenerated by webify.pl on Tue Apr 14 15:20:32 2009
gnuplot version gnuplot 4.3 patchlevel CVS-12Apr2009
#
# $Id: simple.dem,v 1.4 2006/06/30 02:17:22 sfeam Exp $
#
# Requires data files "[123].dat" from this directory,
# so change current working directory to this directory before running.
# gnuplot> set term <term-type>
# gnuplot> load 'simple.dem'
#
set key left box
set samples 50

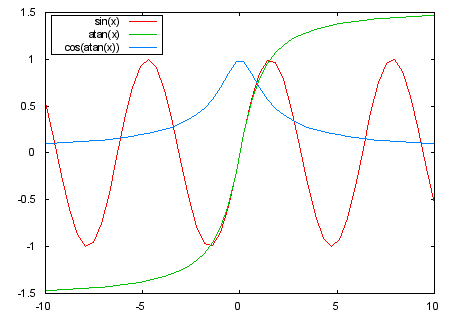

plot [-10:10] sin(x),atan(x),cos(atan(x))

Click here for minimal script to generate this plot




set key right nobox
set samples 100

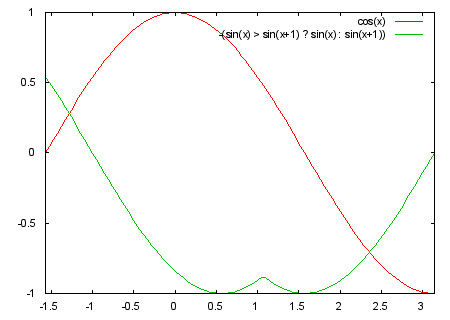

plot [-pi/2:pi] cos(x),-(sin(x) > sin(x+1) ? sin(x) : sin(x+1))

Click here for minimal script to generate this plot




set key left box
set samples 200

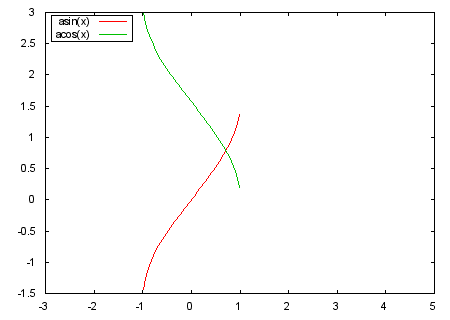

plot [-3:5] asin(x),acos(x)

Click here for minimal script to generate this plot

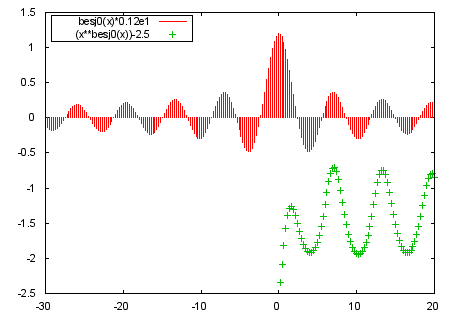

plot [-30:20] besj0(x)*0.12e1 with impulses, (x**besj0(x))-2.5 with points

Click here for minimal script to generate this plot




set samples 400

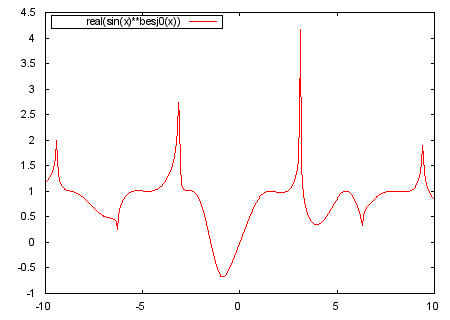

plot [-10:10] real(sin(x)**besj0(x))

Click here for minimal script to generate this plot




set key bmargin center horizontal

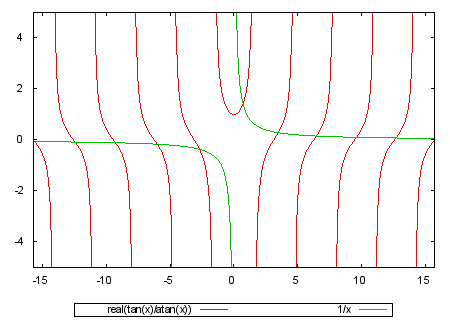

plot [-5*pi:5*pi] [-5:5] real(tan(x)/atan(x)), 1/x

Click here for minimal script to generate this plot




set key left box
set autoscale
set samples 800

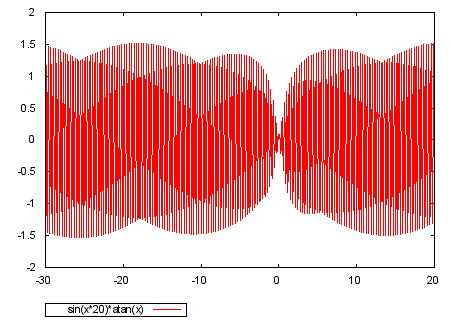

plot [-30:20] sin(x*20)*atan(x)

Click here for minimal script to generate this plot

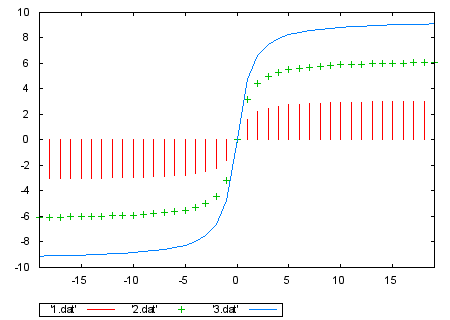

plot [-19:19] '1.dat'with impulses ,'2.dat' ,'3.dat' with lines

Click here for minimal script to generate this plot



f(x) = x/100

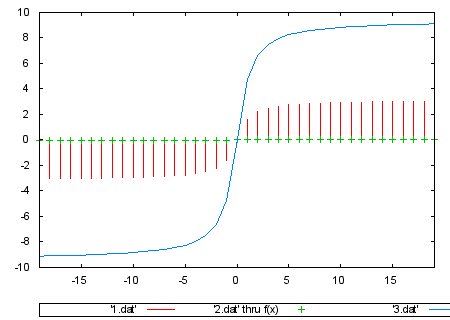

plot [-19:19] '1.dat'with impulses ,'2.dat' thru f(x) ,'3.dat' with lines

Click here for minimal script to generate this plot
