gnuplot demo script: singulr.dem

autogenerated by webify.pl on Tue Apr 14 15:20:33 2009
gnuplot version gnuplot 4.3 patchlevel CVS-12Apr2009
# $Id: singulr.dem,v 1.6 2003/10/28 05:35:54 sfeam Exp $
#
# Demo that plots some surfaces with singularities.
# Author: Carsten Steger
#
# (x,y,x^2-y^2,2xy) is the graph of w=z^2 in 4-space.
# Therefore (x^2-y^2,2xy,x,y) is the graph of w=sqrt(z) in 4-space.
# Coordinates 1, 2, and 3 give the real part of either function,
# whereas coordinates 1, 2, and 4 give the imaginary part.
# The same holds for the cube function w=z^3. The graphs are given by
# (x,y,x^3-3xy^2,3x^2y-y^3) and (x^3-3xy^2,3x^2y-y^3,x,y).
# And so on...


set parametric
set hidden3d
set isosamples 21
set autoscale


set view 60,30
set urange [-3:3]
set vrange [-3:3]

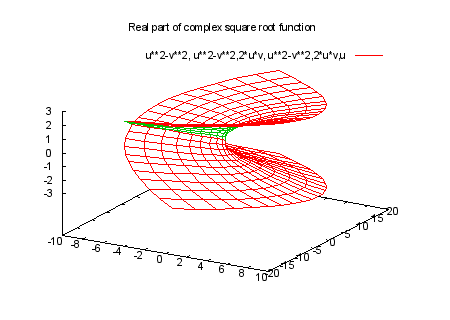

set title "Real part of complex square root function"
splot u**2-v**2,2*u*v,u

Click here for minimal script to generate this plot





set view 60,210

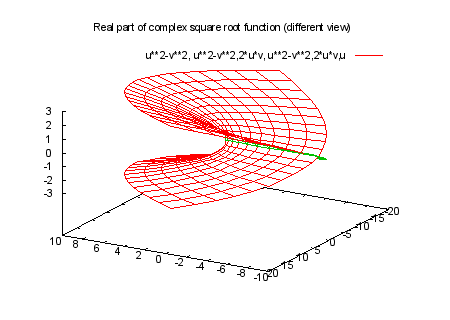

set title "Real part of complex square root function (different view)"
replot

Click here for minimal script to generate this plot





set view 60,120
set urange [-3:3]
set vrange [-3:3]

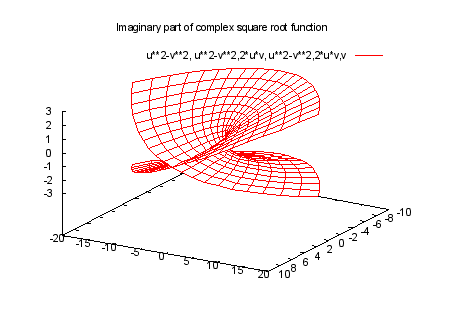

set title "Imaginary part of complex square root function"
splot u**2-v**2,2*u*v,v

Click here for minimal script to generate this plot





set view 60,300

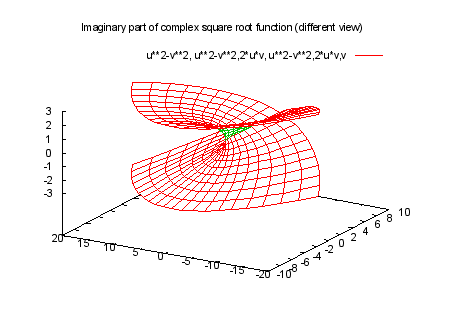

set title "Imaginary part of complex square root function (different view)"
replot

Click here for minimal script to generate this plot





set view 60,30
set urange [-3:3]
set vrange [-3:3]

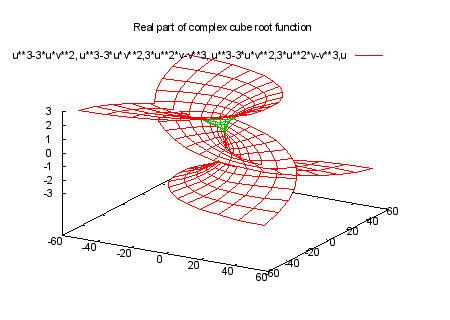

set title "Real part of complex cube root function"
splot u**3-3*u*v**2,3*u**2*v-v**3,u

Click here for minimal script to generate this plot





set view 60,210

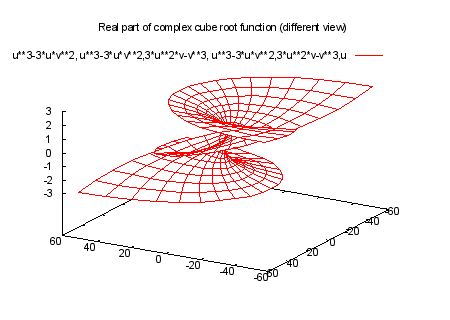

set title "Real part of complex cube root function (different view)"
replot

Click here for minimal script to generate this plot





set view 60,30
set urange [-3:3]
set vrange [-3:3]

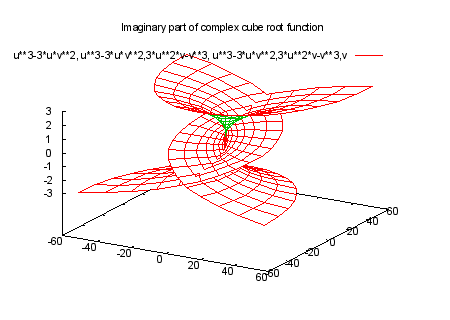

set title "Imaginary part of complex cube root function"
splot u**3-3*u*v**2,3*u**2*v-v**3,v

Click here for minimal script to generate this plot





set view 60,210

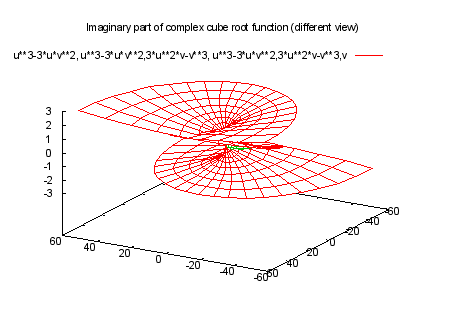

set title "Imaginary part of complex cube root function (different view)"
replot

Click here for minimal script to generate this plot





set view 60,30
set isosamples 31
set urange [-1:1]
set vrange [-1:1]

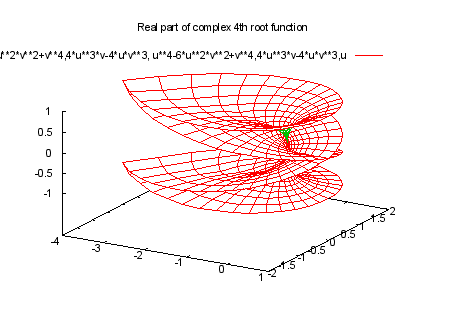

set title "Real part of complex 4th root function"
splot u**4-6*u**2*v**2+v**4,4*u**3*v-4*u*v**3,u

Click here for minimal script to generate this plot





set view 60,210

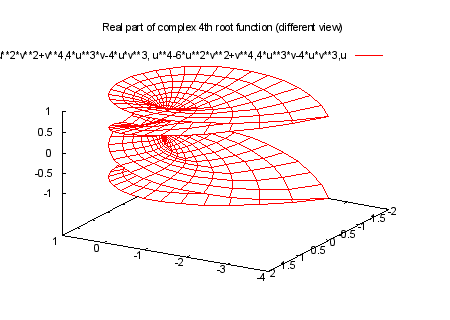

set title "Real part of complex 4th root function (different view)"
replot

Click here for minimal script to generate this plot





set view 60,120
set urange [-1:1]
set vrange [-1:1]

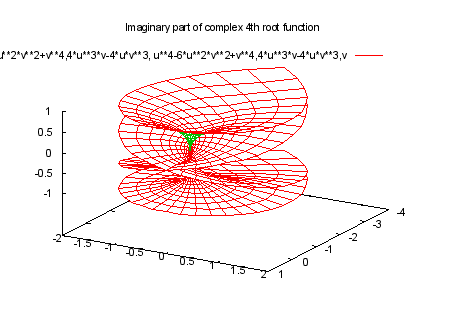

set title "Imaginary part of complex 4th root function"
splot u**4-6*u**2*v**2+v**4,4*u**3*v-4*u*v**3,v

Click here for minimal script to generate this plot





set view 60,300

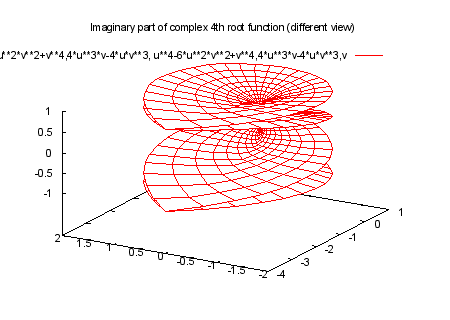

set title "Imaginary part of complex 4th root function (different view)"
replot

Click here for minimal script to generate this plot





set isosamples 21
set view 60,20
set urange [-3:3]
set vrange [-3:3]

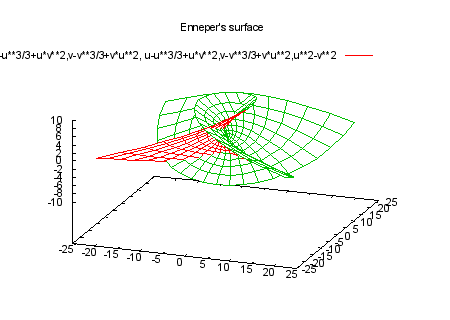

set title "Enneper's surface"
splot u-u**3/3+u*v**2,v-v**3/3+v*u**2,u**2-v**2

Click here for minimal script to generate this plot





set view 60,110

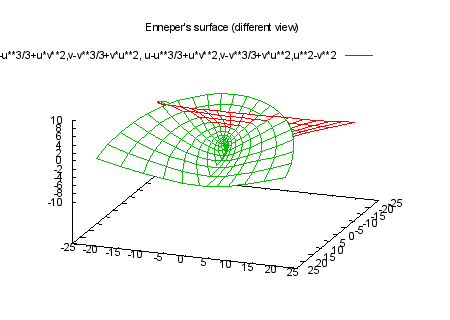

set title "Enneper's surface (different view)"
replot

Click here for minimal script to generate this plot





set isosamples 31,11
set view 60,30

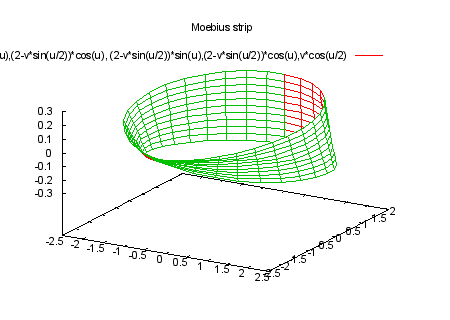

set title "Moebius strip"
set urange [0:2*pi]
set vrange [-0.25:0.25]
splot (2-v*sin(u/2))*sin(u),(2-v*sin(u/2))*cos(u),v*cos(u/2)

Click here for minimal script to generate this plot





set view 60,210

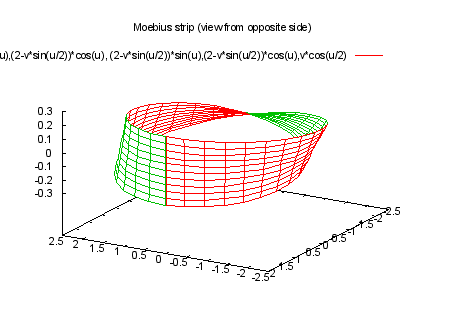

set title "Moebius strip (view from opposite side)"
replot

Click here for minimal script to generate this plot




unset key
set xrange [-10:10]
set yrange [-10:10]
set zrange [-3:3]
set urange [0:2*pi]
set vrange [0:2*pi]
set isosamples 39,60
set view 60,120

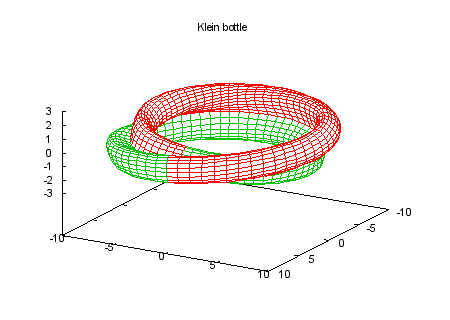

set title "Klein bottle"
splot  (2*sin(u)*cos(v/2)-sin(2*u)*sin(v/2)+8)*cos(v), \
       (2*sin(u)*cos(v/2)-sin(2*u)*sin(v/2)+8)*sin(v), \
        2*sin(u)*sin(v/2)+sin(2*u)*cos(v/2)

Click here for minimal script to generate this plot





set urange [0:2*pi]
set vrange [0:4*pi/3]
set isosamples 39,40
set view 60,20

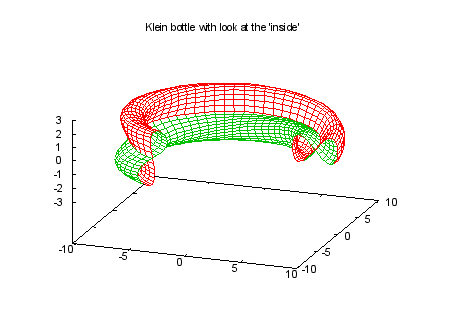

set title "Klein bottle with look at the 'inside'"
replot

Click here for minimal script to generate this plot




set style data lines
set xrange [-12:12]
set yrange [-12:12]
set zrange [*:*]
unset hidden3d
set ticslevel 0.
set view 50,15	#HBB: ,1,1.7

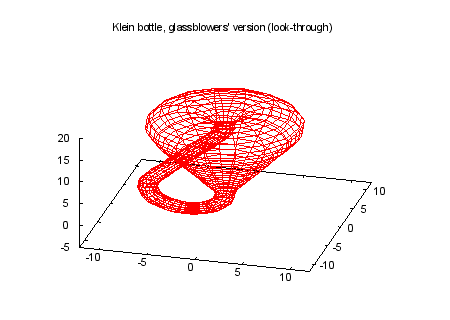

set title "Klein bottle, glassblowers' version (look-through)"
splot "klein.dat"

Click here for minimal script to generate this plot





set hidden3d
set view 70,305

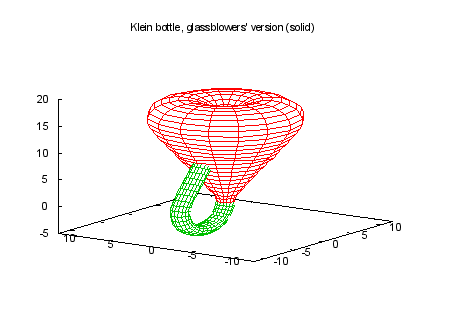

set title "Klein bottle, glassblowers' version (solid)"
splot "klein.dat"

Click here for minimal script to generate this plot
