# Demo of plotting piecewise functions
#
unset border
set key center top reverse Left
set xzeroaxis
set yzeroaxis
set xtics axis out scale 1,8
set xtics add  (1.00000 1, 6.28319 1)
set ytics axis

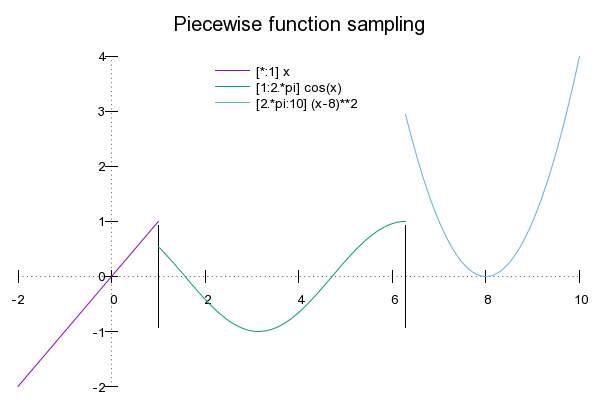

set title "Piecewise function sampling" font ",15"
set xrange [ -2 : 10 ] noreverse nowriteback

plot y=0, [*:1] x, [1:2.*pi] cos(x), [2.*pi:10] (x-8)**2


Click here for minimal script to generate this plot

#
# This example taken from
# http://amca01.wordpress.com/2012/05/29/a-piecewise-polynomial-approximation-to-the-normal-cdf/
# Original approximation from John Hoyt (1962), The American Statistician 22:25-26.
#
set termopt enhanced; show term
set termopt dash;
save_encoding = GPVAL_ENCODING; set encoding utf8

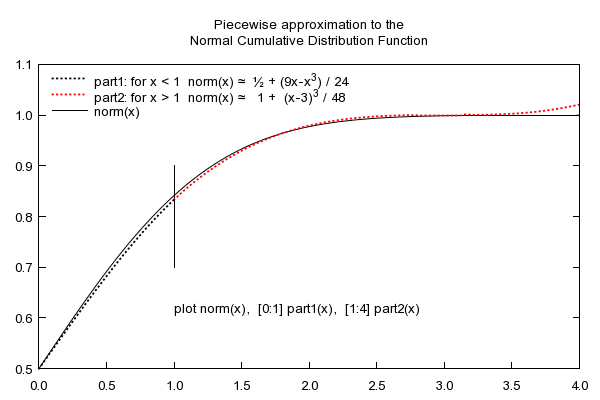

set title "Piecewise approximation to the\nNormal Cumulative Distribution Function"

set format "%.1f"
set key left Left reverse invert
set style data lines
set xtics nomirror
set xrange [ 0   : 4 ]
set yrange [ 0.5 : 1.1 ]
set style line 1 lt 0 lw 3
set style line 2 lt 0 lw 3 lc rgb "red"

part1(x) = 0.5 + (9.*x-x**3)/ 24.
part2(x) = 1.0 + (x-3.0)**3 / 48.

part1 = "part1: for x < 1  norm(x) ≈  ½ + (9x-x^3) / 24"
part2 = "part2: for x > 1  norm(x) ≈   1 +  (x-3)^3 / 48"

set label 1 at 1.0, 0.62
set label 1 "plot norm(x),  [0:1] part1(x),  [1:4] part2(x)"
set arrow 1 from 1.,.7 to 1.,.9 nohead

plot norm(x) lt -1, \
     [1:4] part2(x) ls 2 title part2, \
     [0:1] part1(x) ls 1 title part1


Click here for minimal script to generate this plot

set encoding save_encoding
set termopt solid
