gnuplot demo script: pm3dcolors.dem

autogenerated by webify.pl on Sat Mar 11 15:38:59 2023
gnuplot version gnuplot 5.4 patchlevel 7alpha
# Test of color modes for pm3d palettes.

#

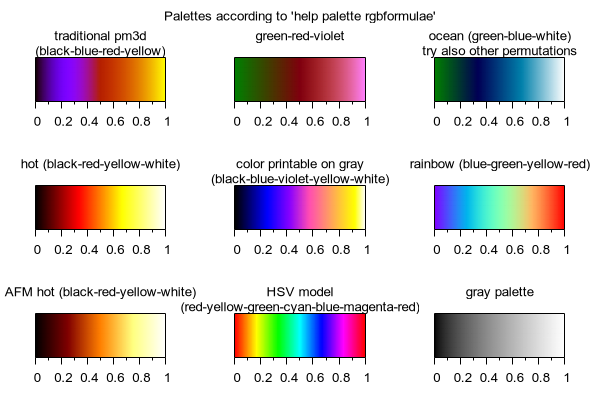

# Multiplot with some of the recommended rgbformulae palettes
#
set view map
set style function pm3d
set multiplot layout 3,3 \
    title "Palettes according to 'help palette rgbformulae'"
g(x)=x
set xrange [0:1]; set xtics 0.2 scale 1.5 nomirror; set mxtics 2
# set palette maxcolors 128
unset colorbox; unset key; set tics out; unset ytics
set palette rgb 7,5,15; set title "traditional pm3d\n(black-blue-red-yellow)"; splot g(x)
set palette rgb 3,11,6; set title "green-red-violet"; splot g(x)
set palette rgb 23,28,3; set title "ocean (green-blue-white)\ntry also other permutations"; splot g(x)
set palette rgb 21,22,23; set title "hot (black-red-yellow-white)"; splot g(x)
set palette rgb 30,31,32; set title "color printable on gray\n(black-blue-violet-yellow-white)"; splot g(x)
set palette rgb 33,13,10; set title "rainbow (blue-green-yellow-red)"; splot g(x)
set palette rgb 34,35,36; set title "AFM hot (black-red-yellow-white)"; splot g(x)
set palette model HSV

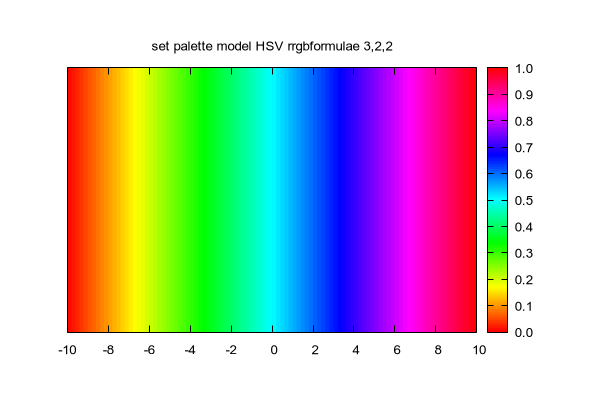

set palette rgb 3,2,2; set title "HSV model\n(red-yellow-green-cyan-blue-magenta-red)"; splot g(x)
set pal gray; set title "gray palette"; splot g(x)
unset multiplot

Click here for minimal script to generate this plot





#
#   Gradient Palettes
#
set view map
set style function pm3d
set palette color

f(x)=(x+10)/20
set cbrange [f(-10):f(10)] # [0:1]
set xrange [-10:10]
set yrange [*:*]
set xtics 2
set cbtics 0.1
set format cb "%3.1f"
unset ztics
unset ytics
set samples 101
set isosamples 2
unset key

set palette model RGB

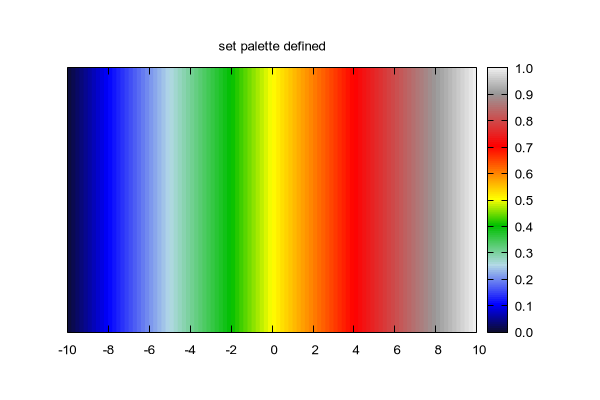

set palette defined
set title "set palette defined"
splot f(x)

Click here for minimal script to generate this plot




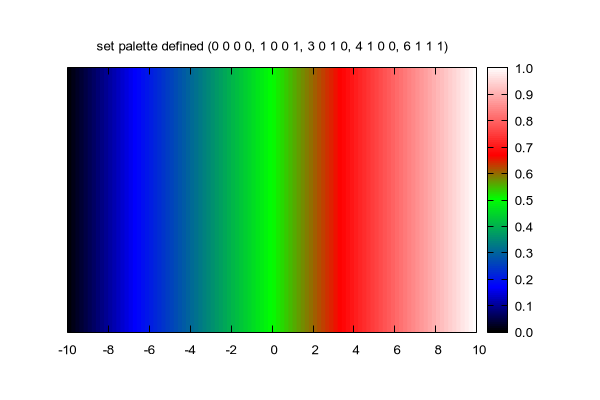

set palette defined (0 0 0 0, 1 0 0 1, 3 0 1 0, 4 1 0 0, 6 1 1 1)
set title 'set palette defined (0 0 0 0, 1 0 0 1, 3 0 1 0, 4 1 0 0, 6 1 1 1)'
splot f(x)

Click here for minimal script to generate this plot





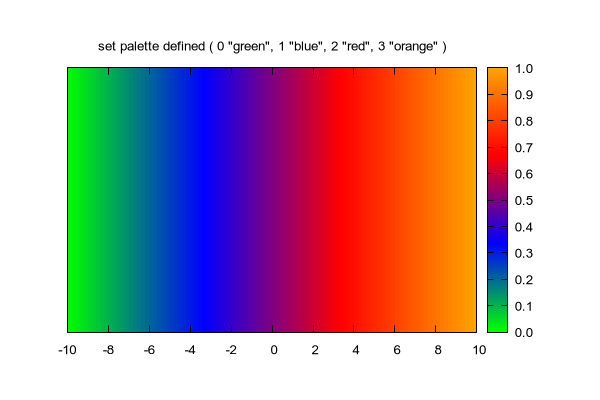

set palette defined ( 0 "green", 1 "blue", 2 "red", 3 "orange" )
set title 'set palette defined ( 0 "green", 1 "blue", 2 "red", 3 "orange" )'
splot f(x)

Click here for minimal script to generate this plot

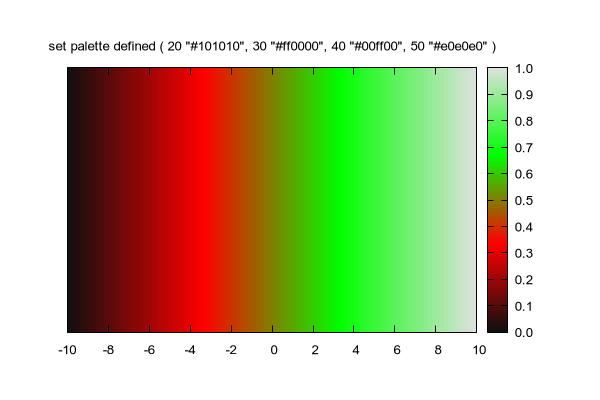

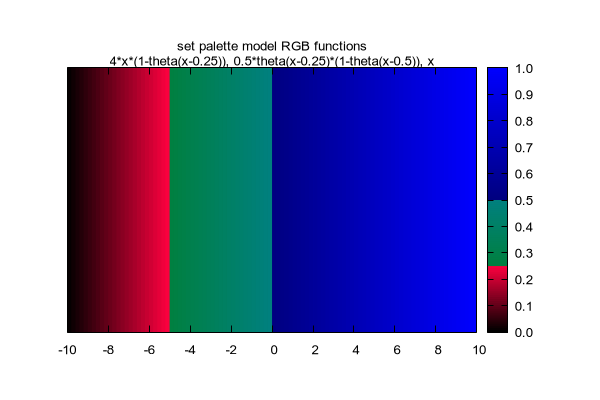

set palette defined ( 20 "#101010", 30 "#ff0000", 40 "#00ff00", 50 "#e0e0e0" )
set title 'set palette defined ( 20 "#101010", 30 "#ff0000", 40 "#00ff00", 50 "#e0e0e0" )'
splot f(x)

Click here for minimal script to generate this plot





set palette defined ( 0 0 0 0, 1 1 1 1 )
set title 'set palette defined ( 0 0 0 0, 1 1 1 1 )'
splot f(x)

Click here for minimal script to generate this plot

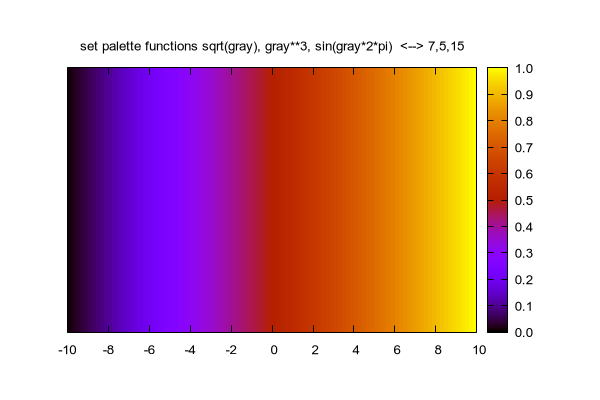

set palette model HSV defined ( 0 0 1 1, 1 1 1 1 )
set title 'set palette model HSV defined ( 0 0 1 1, 1 1 1 1 )'
splot f(x)

Click here for minimal script to generate this plot





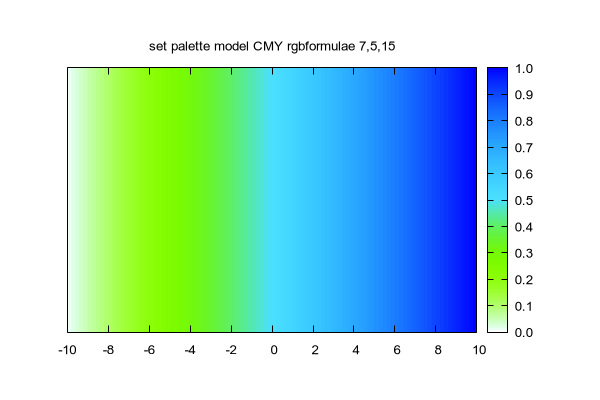

set palette model RGB

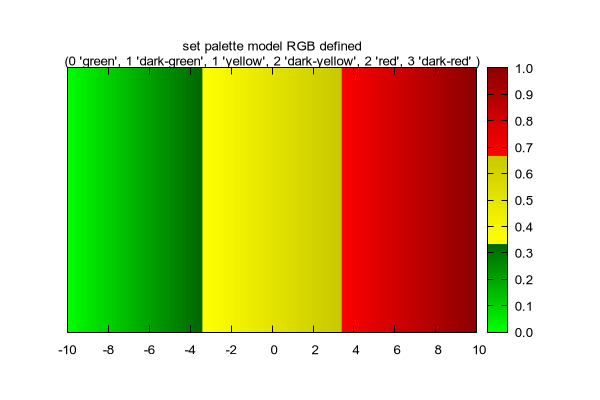

set palette model RGB defined (0 "green", 1 "dark-green", 1 "yellow", 2 "dark-yellow", 2 "red", 3 "dark-red" )
set title "set palette model RGB defined\n(0 'green', 1 'dark-green', 1 'yellow', 2 'dark-yellow', 2 'red', 3 'dark-red' )"
splot f(x)

Click here for minimal script to generate this plot





set palette model RGB

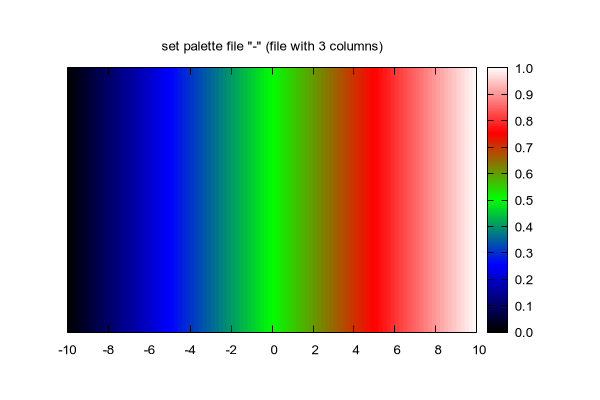

set title 'set palette file "-" (file with 3 columns)'
set palette file "-"
0 0 0
0 0 1
0 1 0
1 0 0
1 1 1
e
splot f(x)

Click here for minimal script to generate this plot

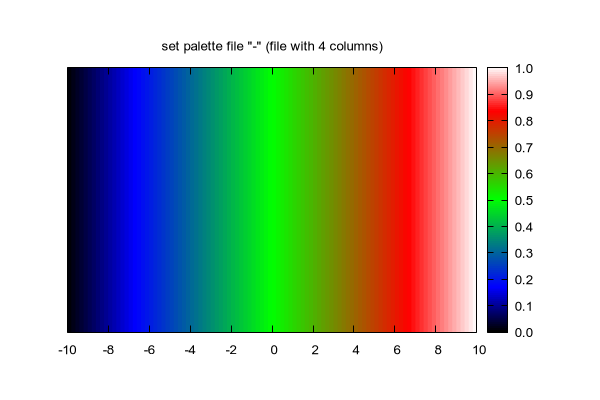

set title 'set palette file "-" (file with 4 columns)'
set palette file "-"
10 0 0 0
20 0 0 1
40 0 1 0
60 1 0 0
70 1 1 1
e
splot f(x)

Click here for minimal script to generate this plot





set title 'set palette file "-" using 1:2:($1+$2)/2'
set palette file "-" using ($0):1:2:(($1+$2)/2)
0 0
0 1
1 0
1 1
e
splot f(x)

Click here for minimal script to generate this plot






#
#    Color Models
#
set palette color
set view map
set xrange [-10:10]
unset ztics
unset ytics
set samples 101
set isosamples 2
set xtics 2

set palette rgbformulae 7,5,15

set palette model RGB rgbformulae 7,5,15
set title "set palette model RGB rgbformulae 7,5,15"
splot f(x)

Click here for minimal script to generate this plot





set palette model HSV rgbformulae 7,5,15
set title "set palette model HSV rgbformulae 7,5,15"
splot f(x)

Click here for minimal script to generate this plot





set palette model CMY rgbformulae 7,5,15
set title "set palette model CMY rgbformulae 7,5,15"
splot f(x)

Click here for minimal script to generate this plot





set palette model HSV rgbformulae 3,2,2
set title "set palette model HSV rrgbformulae 3,2,2"
splot f(x)

Click here for minimal script to generate this plot






#
#   User Defined Functions
#
set palette color
set view map
set cbrange [f(-10):f(10)]
set xrange [-10:10]
set yrange [0:1]
unset ztics
unset ytics
set samples 101
set isosamples 2
set xtics 2

set palette model RGB

set palette functions gray, gray, gray
set title "set palette functions gray, gray, gray"
splot f(x)

Click here for minimal script to generate this plot

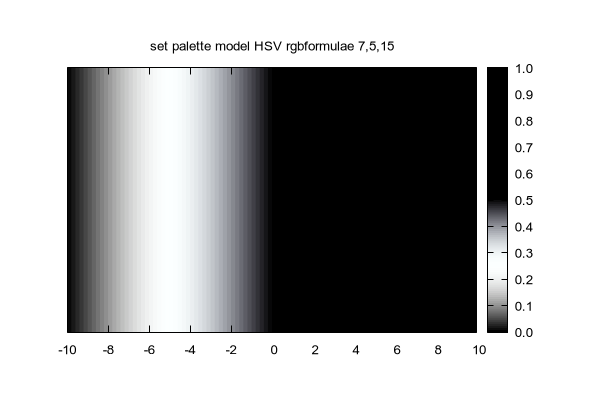

set palette functions sqrt(gray), gray**3, sin(gray*2*pi)
set title 'set palette functions sqrt(gray), gray**3, sin(gray*2*pi)  <--> 7,5,15'
splot f(x)

Click here for minimal script to generate this plot





set palette rgbformulae 7,5,15
set title 'set palette rgbformulae 7,5,15'
splot f(x)

Click here for minimal script to generate this plot





theta(x) = x<0 ? 0 : 1
r(x) = 4*x*(1-theta(x-0.25))
g(x) = 0.5*theta(x-0.25)*(1-theta(x-0.5))
b(x) = x
set palette model RGB functions r(gray),g(gray),b(gray)
set title "set palette model RGB functions\n4*x*(1-theta(x-0.25)), 0.5*theta(x-0.25)*(1-theta(x-0.5)), x"
splot f(x)

Click here for minimal script to generate this plot




unset datafile
