# # Exercise complex Airy functions Ai(z), Bi(z) # if (!strstrt(GPVAL_COMPILE_OPTIONS, "+AMOS")) { print "This copy of gnuplot does not support Ai, Bi" exit # return to caller } # # Compare built-in airy(x) with AMOS Ai(z) for real z # set xrange [0:5] set multiplot layout 2,1 \ title "Agreement of built-in airy(x) with Amos library Ai(z) for real z" set lmargin at screen 0.15 plot [0:10] abs(Ai(x) - airy(x)) / Ai(x) set yrange [0:1.4] set ytics 1 plot [0:30] (Ai(x) - airy(x)) / Ai(x) unset multiplot |

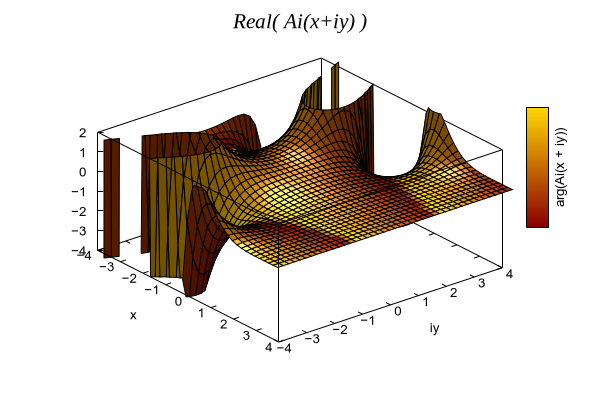

set xrange [-4:4] set yrange [-4:4] set zrange [-4:2] set sample 51 set isosample 51 set view 45, 51, 0.9 set xyplane 0 set border -1 set pm3d border lt -1 lighting spec 0.5 set cblabel "arg(Ai(x + iy))" rotate unset cbtics set xlabel "x" set ylabel "iy" set palette defined (0 "dark-red", 1 "gold") set title "{/Times:Italic=16 Real( Ai(x+iy) )}" set title offset 0,0.5 splot '++' using 1:2:(real(Ai(x + y*I))):(arg(Ai(x + y*I))) notitle with pm3d |
set title "{/Times:Italic=16 Imag( Ai(x+iy) )}" set title offset 0,0.5 splot '++' using 1:2:(imag(Ai(x + y*I))):(arg(Ai(x + y*I))) notitle with pm3d |

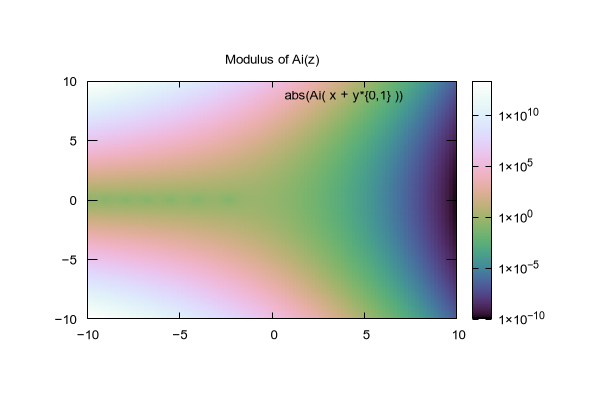

save_encoding = GPVAL_ENCODING set encoding utf8 set log cb set cbtics format "%.0t×10^{%T}" unset mcbtics set palette cubehelix gamma 2.0 set view map scale 0.9 set isosamples 100,100 set title 'Modulus of Ai(z)' splot abs(Ai( x + y*{0,1} )) with pm3d |

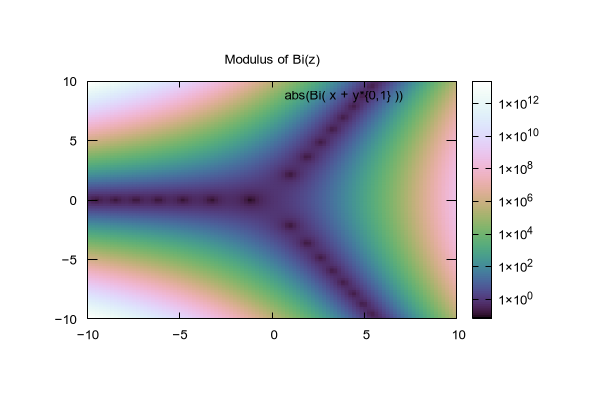

set title 'Modulus of Bi(z)' splot abs(Bi( x + y*{0,1} )) with pm3d |
set encoding save_encoding |
