gnuplot demo script: smooth_splines.dem

autogenerated by webify.pl on Fri May 24 14:07:14 2024
gnuplot version gnuplot 6.0 patchlevel 1
# Plot smoothing with
# natural cubic splines (smooth csplines)
# weighted approximate cubic splines (smooth acsplines)
# Bezier curve (smooth bezier)
# 2D and 3D acspline examples

print "various splines for smoothing"

set title "cubic spline fit to data (no weights)"
set samples 300
set xlabel "Time (sec)"
set ylabel "Rate"
plot "silver.dat" t "experimental" w errorb, \
               ""  smooth csplines t "cubic smooth" lw 2


Click here for minimal script to generate this plot



set title "acsplines weighted by relative error"
# error is column 3; weight larger errors less
# start with rel error = 1/($3/$2)
S=1
plot "silver.dat" t "experimental" w errorb,\
               "" u 1:2:(S*$2/$3) smooth acsplines t "acspline Y/Z" lw 2


Click here for minimal script to generate this plot



set title "acsplines with increasing weight from error estimate"
plot "silver.dat" t "rate" w errorb,\
               "" u 1:2:($2/($3*1.e1)) sm acs t "acspline Y/(Z*1.e1)" lw 2,\
               "" u 1:2:($2/($3*1.e3)) sm acs t "         Y/(Z*1.e3)" lw 2,\
               "" u 1:2:($2/($3*1.e5)) sm acs t "         Y/(Z*1.e5)" lw 2


Click here for minimal script to generate this plot



set title "Same plot (various weighting) in log scale"
set logscale y
set grid x y mx my
replot


Click here for minimal script to generate this plot



set title "Bezier curve rather than cubic spline"
unset logscale y
plot "silver.dat" t "experimental" w errorb,\
               "" smooth sbezier t "bezier" lw 2


Click here for minimal script to generate this plot



set title "Bezier curve with log scale"
set logscale y
replot

unset log
unset grid


Click here for minimal script to generate this plot



set title "3D smooth acsplines (special case with curve in single plane)"
set key right top
set key title "\n\n"
set xrange [0:600]
set yrange [0:600]
set zrange [0:300]
set xyplane at 0
unset xtics
set ytics offset 0,-1
set ylabel  "Time" offset 0,-2

set view 89.9 ,90, 1.5,1.0
splot "silver.dat" using (1):1:2 t "rate" w errorb,\
               "" u (1):1:2:($2/($3*1.e1)) smooth acs t "acspline Y/(Z*1.e1)" lw 2,\
               "" u (1):1:2:($2/($3*1.e3)) smooth acs t "         Y/(Z*1.e3)" lw 2,\
               "" u (1):1:2:($2/($3*1.e5)) smooth acs t "         Y/(Z*1.e5)" lw 2


Click here for minimal script to generate this plot



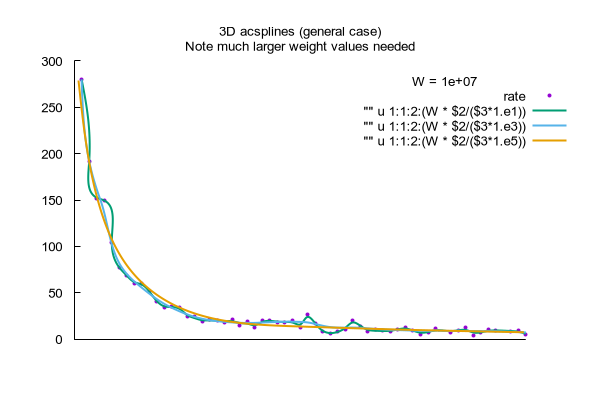

set title "3D acsplines (general case)\nNote much larger weight values needed"
set view 90,45,1.,1.5
unset xtics
unset ytics
unset xlabel
unset ylabel

W = 1.e7
set key title sprintf("\n\nW = %.2g", W)
splot "silver.dat" using 1:1:2 t "rate" w errorb,\
               "" u 1:1:2:(W * $2/($3*1.e1)) smooth acs lw 2,\
               "" u 1:1:2:(W * $2/($3*1.e3)) smooth acs lw 2,\
               "" u 1:1:2:(W * $2/($3*1.e5)) smooth acs lw 2


Click here for minimal script to generate this plot
