gnuplot demo script: hidden_compare.dem

autogenerated by webify.pl on Wed Aug 21 21:18:37 2024
gnuplot version gnuplot 6.1 last modified 2024-08-21

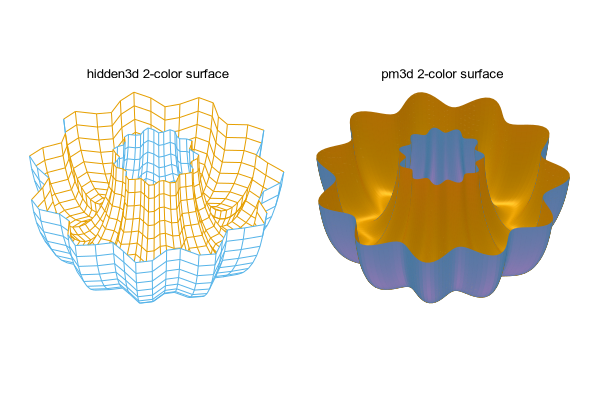

# Compare hidden3d and pm3d methods for handling hidden surface removal

unset border
set dummy u, v
unset key
set view 225, 206, 1.25, 0.50
unset xtics
unset ytics
unset ztics
unset colorbox

set parametric
set dummy u,v
set urange [ -3.14159 : 3.14159 ]
set vrange [ 0.250000 : 3.14159 ]
set isosamples 50, 20

set multiplot layout 1,2 margins .05,.95,.2,.8 spacing 0.05

set title "hidden3d 2-color surface"
set hidden3d back offset 1

splot (cos(u)+.5*cos(u)*cos(v))*(1.+sin(11.*u)/10.), \
      (sin(u)+.5*sin(u)*cos(v))*(1.+sin(11.*u)/10.), \
      0.5*sin(v) with lines lt 3

set title "pm3d 2-color surface"
set pm3d depthorder
set pm3d interpolate 1,1 # border linecolor rgb "#a0a0f0"  linewidth 0.500
set pm3d lighting primary 0.33 specular 0.2 spec2 0.3
set isosamples 200,200

splot (cos(u)+.5*cos(u)*cos(v))*(1.+sin(11.*u)/10.), \
      (sin(u)+.5*sin(u)*cos(v))*(1.+sin(11.*u)/10.), \
      0.5*sin(v) with pm3d fc ls 3

unset multiplot


Click here for minimal script to generate this plot
