# Example of using histogram modes
#
set title "US immigration from Europe by decade"
set datafile missing "-"
set xtics nomirror rotate by -45
set key noenhanced
#

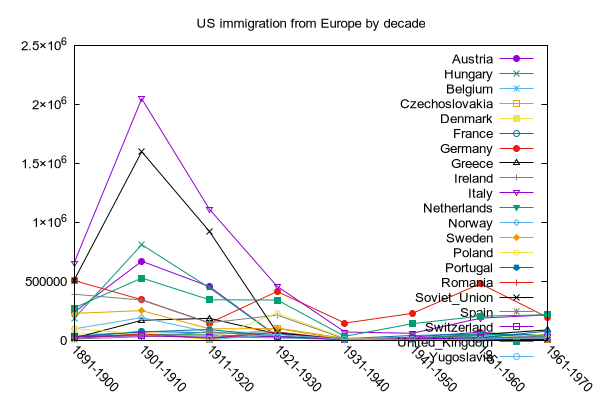

# First plot using linespoints
set style data linespoints
plot 'immigration.dat' using 2:xtic(1) title columnheader(2), \
for [i=3:22] '' using i title columnheader(i)
#

Click here for minimal script to generate this plot



#

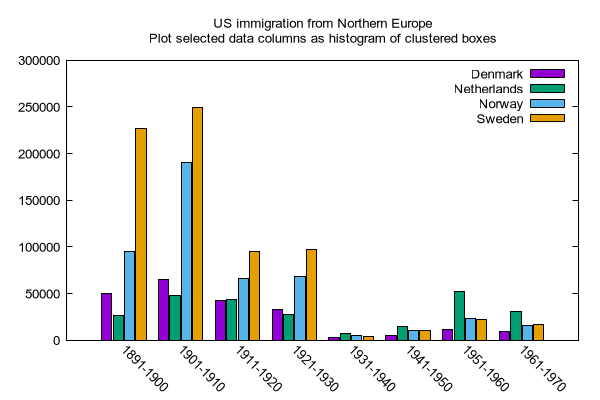

set title "US immigration from Northern Europe\nPlot selected data columns as histogram of clustered boxes"
set auto x
set yrange [0:300000]
set style data histogram
set style histogram cluster gap 1
set style fill solid border -1
set boxwidth 0.9
set xtic rotate by -45 scale 0
#set bmargin 10
plot 'immigration.dat' using 6:xtic(1) ti col, '' u 12 ti col, '' u 13 ti col, '' u 14 ti col
#

Click here for minimal script to generate this plot



#

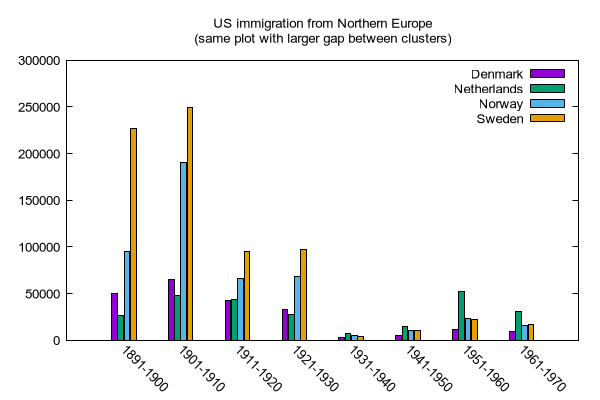

set title "US immigration from Northern Europe\n(same plot with larger gap between clusters)"
set style histogram gap 5
replot
#

Click here for minimal script to generate this plot



#
#

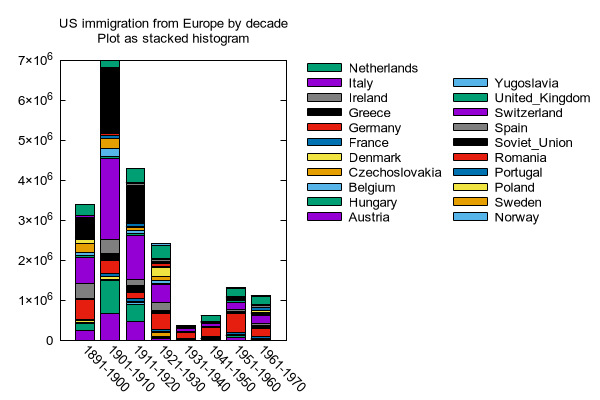

# Stacked histograms
#
set title "US immigration from Europe by decade\nPlot as stacked histogram"
set key invert reverse Left outside
set key autotitle columnheader
set yrange [0:7e6]
set auto x
unset xtics
set xtics nomirror rotate by -45 scale 0
set style data histogram
set style histogram rowstacked
set style fill solid border -1
set boxwidth 0.75
#
plot 'immigration.dat' using 2:xtic(1), for [i=3:22] '' using i
#

Click here for minimal script to generate this plot



#

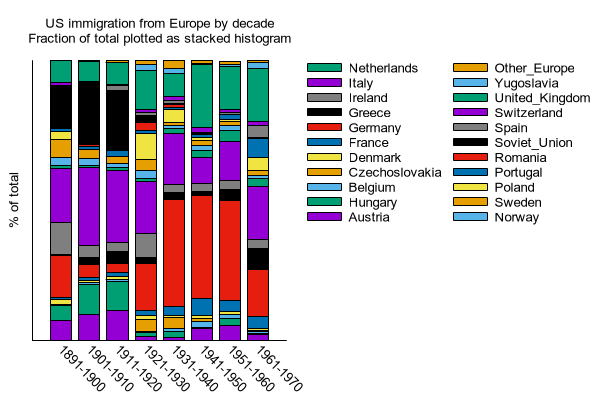

# Stacked histograms by percent
#
set title "US immigration from Europe by decade\nFraction of total plotted as stacked histogram"
set key invert reverse Left outside
set yrange [0:100]
set ylabel "% of total"
unset ytics
set grid y
set border 3
set style data histograms
set style histogram rowstacked
set style fill solid border -1
set boxwidth 0.75
#
plot 'immigration.dat' using (100.*$2/$24):xtic(1) t column(2), \
     for [i=3:23] '' using (100.*column(i)/column(24)) title column(i)
#

Click here for minimal script to generate this plot



#

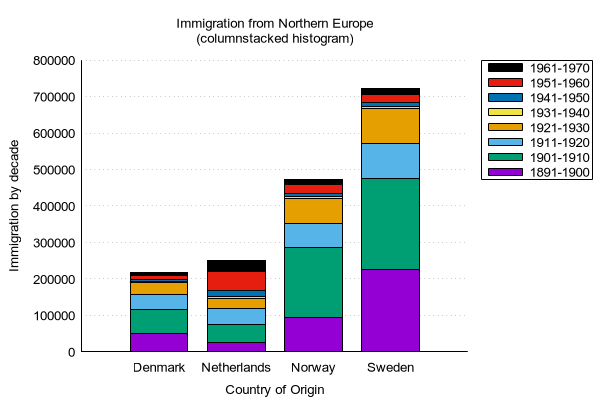

# Columnstacks
#	xtic labels should be picked up from column heads ('title column')
#	key titles should be picked up from row heads ('key(1)')
#
set title "Immigration from Northern Europe\n(columnstacked histogram)"
set style histogram columnstacked
set key noinvert box
set yrange [0:*]
set ylabel "Immigration by decade"
set xlabel "Country of Origin"
set tics scale 0.0
set ytics
unset xtics
set xtics norotate nomirror
plot 'immigration.dat' using 6 ti col, '' using 12 ti col, \
     '' using 13 ti col, '' using 14:key(1) ti col
#

Click here for minimal script to generate this plot



#

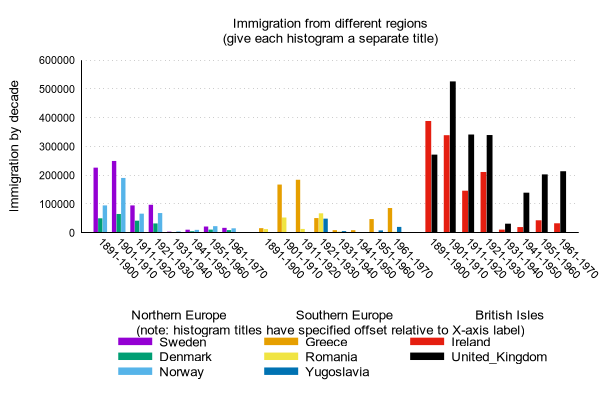

# 'newhistogram' keyword to plot
#
set title "Immigration from different regions\n(give each histogram a separate title)"
set key under nobox
set style histogram clustered gap 1 title offset 2,0.25
set style fill solid noborder
set boxwidth 0.95
unset xtics
set xtics nomirror rotate by -45 scale 0 font ",8"
set xlabel "(note: histogram titles have specified offset relative to X-axis label)" offset 0,-2
set ytics font ",8"
set grid y
set auto y
plot \
newhistogram "Northern Europe", \
'immigration.dat' using "Sweden":xtic(1) t col, '' u "Denmark" t col, '' u "Norway" t col, \
newhistogram "Southern Europe", \
'' u "Greece":xtic(1) t col, '' u "Romania" t col, '' u "Yugoslavia" t col, \
newhistogram "British Isles", \
'' u "Ireland":xtic(1) t col, '' u "United_Kingdom" t col
#

Click here for minimal script to generate this plot



#

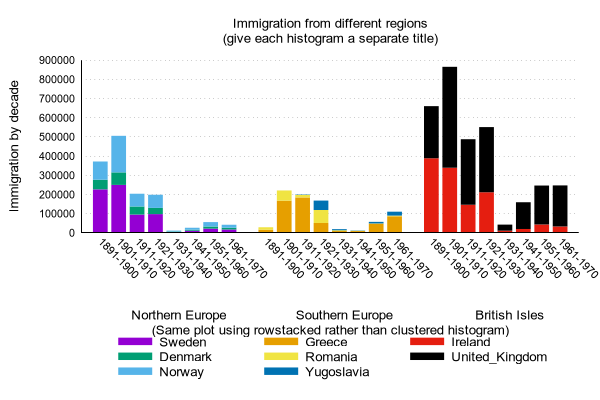

set style histogram rows
set boxwidth 0.8
set yrange [0:900000]
set xlabel "(Same plot using rowstacked rather than clustered histogram)"
replot
#

Click here for minimal script to generate this plot
