# Various ways of plotting functions in polar coordinates
#
unset border
set clip
set polar
set xtics axis nomirror
set ytics axis nomirror
unset rtics
set samples 160
set zeroaxis
set trange [0:2*pi]

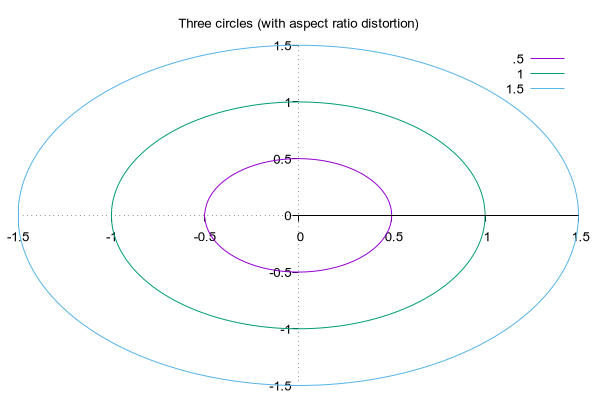

set title "Three circles (with aspect ratio distortion)"
plot .5,1,1.5

Click here for minimal script to generate this plot



set title ""
set key box

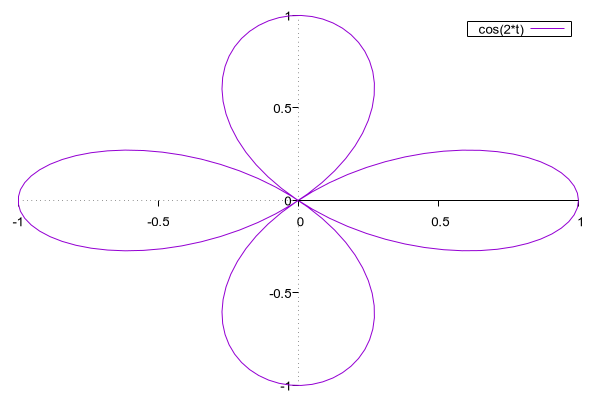

plot cos(2*t)

Click here for minimal script to generate this plot




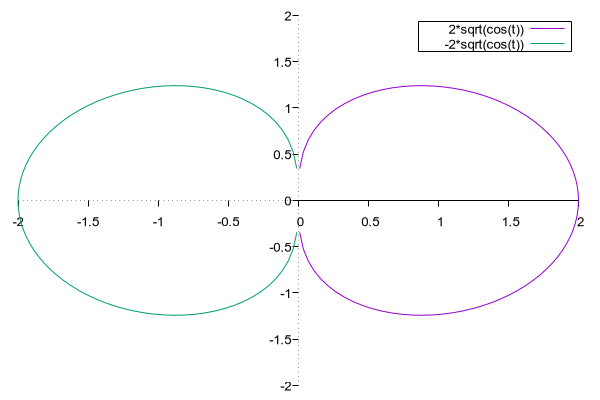

plot 2*sqrt(cos(t)),-2*sqrt(cos(t))

Click here for minimal script to generate this plot




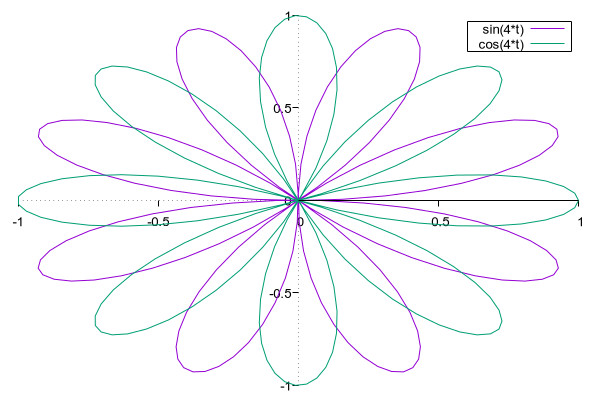

plot sin(4*t),cos(4*t)
set offset 0,0,0,0

Click here for minimal script to generate this plot




set xrange [-5:5]
set yrange [-5:5]

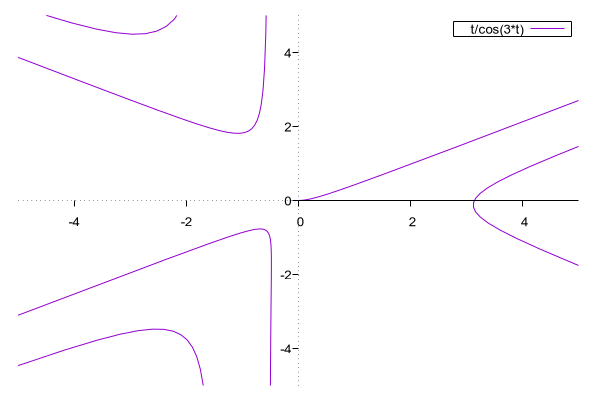

plot t/cos(3*t)

Click here for minimal script to generate this plot



set autoscale

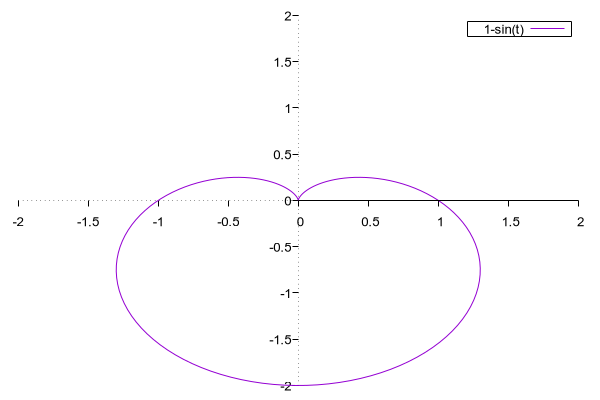

plot 1-sin(t)

Click here for minimal script to generate this plot




set trange [0:12*pi]

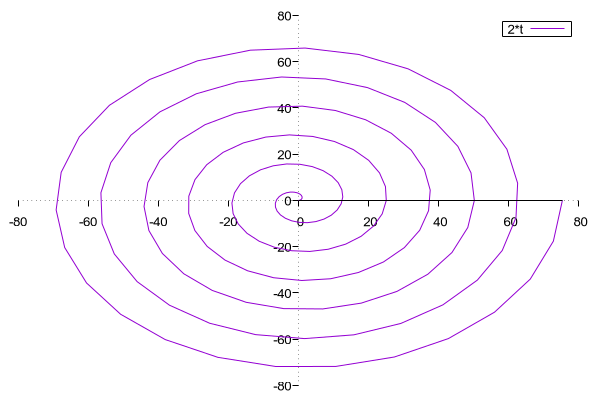

plot 2*t

Click here for minimal script to generate this plot




butterfly(x)=exp(cos(x))-2*cos(4*x)+sin(x/12)**5
set samples 800
set title "Butterfly"
unset key

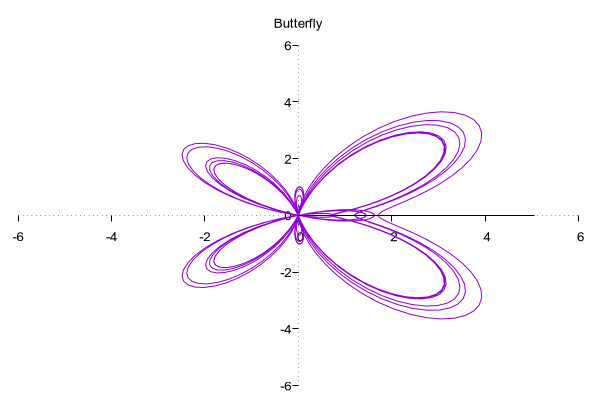

plot butterfly(t)

Click here for minimal script to generate this plot




set polar
set grid polar
unset xtics
unset ytics
set border 0
set style fill solid 0.5
set rrange [0.1 : 4]
set size square
set key title "bounding radius 2.5"
set key outside top right samplen 0.7

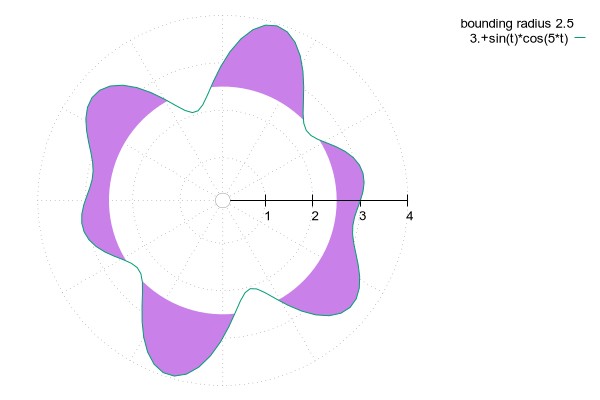

plot 3.+sin(t)*cos(5*t) with filledcurve above r=2.5 notitle,\
     3.+sin(t)*cos(5*t) with line


Click here for minimal script to generate this plot



# undo what we've done above
