# Polygons as individual objects first,
# then "splot with polygons"
#
# The vertices of an icosahedron are circular permutations of (0, ±1, ±ϕ)
# where    ϕ = (1 + √5) / 2    is the golden ratio.

phi = (1.0 + sqrt(5.)) / 2.

array v1 = [0., 1., phi]
array v2 = [0., 1., -phi]
array v3 = [0., -1., phi]
array v4 = [0., -1., -phi]
array v5 = [ 1., phi, 0.]
array v6 = [ 1., -phi, 0.]
array v7 = [ -1., phi, 0.]
array v8 = [ -1., -phi, 0.]
array v9  = [ phi, 0., 1.]
array v10 = [ -phi, 0., 1.]
array v11 = [ phi, 0., -1.]
array v12 = [ -phi, 0., -1.]

# define one point per vertex
do for [i=1:12] {
    eval( sprintf("set label %d 'v%d' at v%d[1], v%d[2], v%d[3]", i,i,i,i,i ))
}

seq1 = "v5 v7 v10 v3 v9 v5"
n = 1
do for [i=1:5] {
    vert1 = word(seq1,i)
    vert2 = word(seq1,i+1)
    eval( sprintf("set obj %d polygon from v1[1], v1[2], v1[3] to %s[1],%s[2],%s[3] to %s[1],%s[2],%s[3]", n, vert1, vert1, vert1, vert2, vert2, vert2) )
    n = n+1
}

seq2 = "v5 v11 v4 v12 v7 v5"
do for [i=1:5] {
    vert1 = word(seq2,i)
    vert2 = word(seq2,i+1)
    eval( sprintf("set obj %d polygon from v2[1], v2[2], v2[3] to %s[1],%s[2],%s[3] to %s[1],%s[2],%s[3]", n, vert1, vert1, vert1, vert2, vert2, vert2) )
    n = n+1
}

seq3 = "v3 v10 v12 v4 v6 v3"
do for [i=1:5] {
    vert1 = word(seq3,i)
    vert2 = word(seq3,i+1)
    eval( sprintf("set obj %d polygon from v8[1], v8[2], v8[3] to %s[1],%s[2],%s[3] to %s[1],%s[2],%s[3]", n, vert1, vert1, vert1, vert2, vert2, vert2) )
    n = n+1
}

    eval( sprintf("set obj %d polygon from v7[1], v7[2], v7[3] to v12[1],v12[2],v12[3] to v10[1],v10[2],v10[3]", n) )
    n = n+1
    eval( sprintf("set obj %d polygon from v6[1], v6[2], v6[3] to v4[1],v4[2],v4[3] to v11[1],v11[2],v11[3]", n) )
    n = n+1
    eval( sprintf("set obj %d polygon from v5[1], v5[2], v5[3] to v9[1],v9[2],v9[3] to v11[1],v11[2],v11[3]", n) )
    n = n+1
    eval( sprintf("set obj %d polygon from v9[1], v9[2], v9[3] to v6[1],v6[2],v6[3] to v11[1],v11[2],v11[3]", n) )
    n = n+1
    eval( sprintf("set obj %d polygon from v9[1], v9[2], v9[3] to v3[1],v3[2],v3[3] to v6[1],v6[2],v6[3]", n) )
    n = n+1

# border color and linewidth is now per-object rather than taken from pm3d
set for [o=1:n] obj o polygon depthorder fc "gray75"
set for [o=1:n] obj o polygon fs transparent solid 0.8 border lc "black" lw 2.0

set pm3d depthorder border lc "black" lw 2  # old version

set xrange [-2:2]; set yrange [-2:2]; set zrange [-2:2]
set view equal xyz
set view 30,30,1.5
unset border
unset colorbox
unset tics
unset key
unset label
undefine v*
undefine seq*

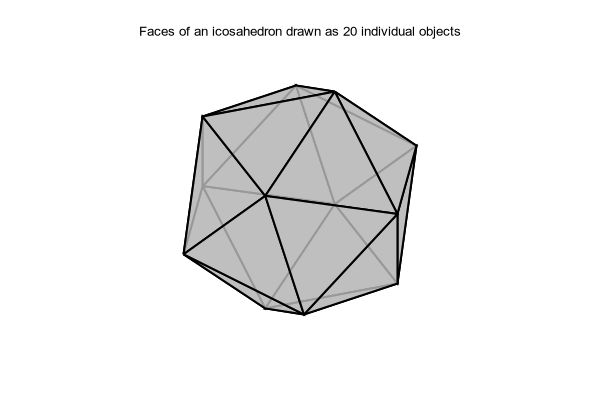

set title "Faces of an icosahedron drawn as 20 individual objects"
splot -10

Click here for minimal script to generate this plot

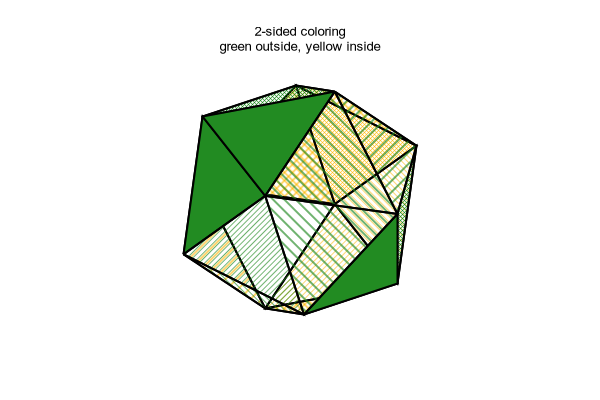

set title "2-sided coloring\ngreen outside, yellow inside"
set style line 101 lc "forest-green"
set style line 102 lc "goldenrod"
set for [o=1:n] obj o polygon depthorder fs transparent pattern o fc ls 101
replot


Click here for minimal script to generate this plot




unset object
set pm3d lighting spec2 0.6

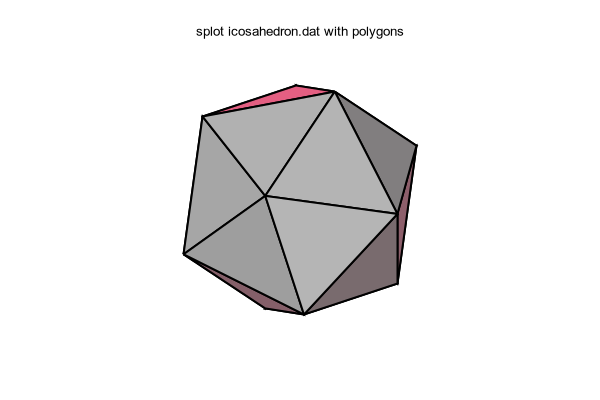

set title "splot icosahedron.dat with polygons"

splot 'icosahedron.dat' with polygons fc "gray75" lw 2


Click here for minimal script to generate this plot

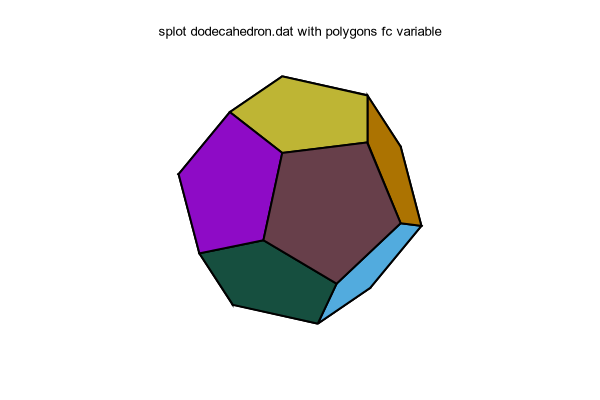

set title "splot dodecahedron.dat with polygons fc variable"
set view 148, 55, 2.7
set pm3d lighting spec2 0.3
set palette cubehelix
set for [i=1:12] linetype 99+i lc palette frac i/12.

splot 'dodecahedron.dat' using 1:2:3:(column(-1)+3) with polygons fc variable lw 2


Click here for minimal script to generate this plot

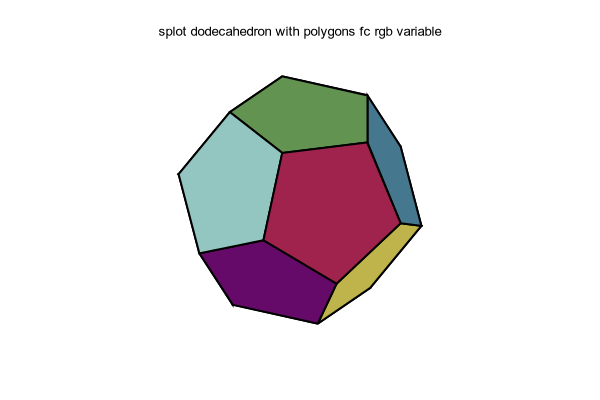

set title "splot dodecahedron with polygons fc rgb variable"

splot 'dodecahedron.dat' using 1:2:3:(0xffffff * rand(0)) with polygons fc rgb variable lw 2


Click here for minimal script to generate this plot

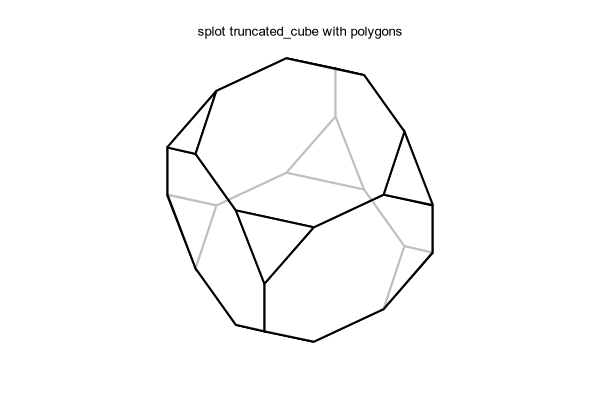

set title "splot truncated_cube with polygons" noenhanced
set view 36, 60, 4.2
set style fill transparent solid 0.75
set pm3d nolighting border lt -1 lw 2

splot 'truncated_cube.dat' using ($1-0.5):($2-0.5):($3-0.5) with polygons fc bgnd lw 2


Click here for minimal script to generate this plot

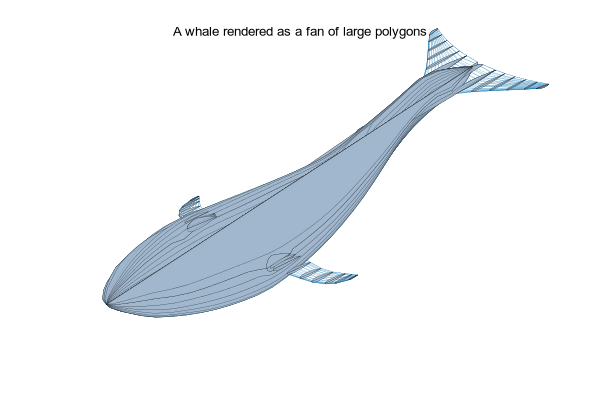

set title "A whale rendered as a fan of large polygons"
set view 59, 314, 3.0, 1.0
set view  equal xyz
set pm3d depthorder
set pm3d border linecolor rgb "blue"  linewidth 0.25
set autoscale

splot 'whale.dat' using 1:2:3 with polygons fc "slategray", \
      'whale.dat' with lines lw .2 lt 6


Click here for minimal script to generate this plot
